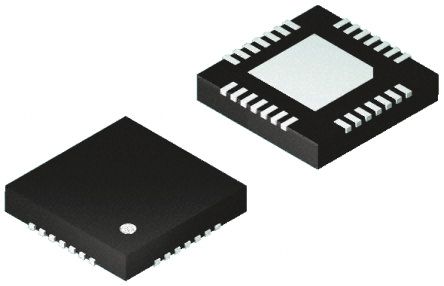

点击放大查看
DSPIC33FJ128GP802-I/MM
| 制造商 | Microchip Technology Inc. |
| 描述 | . DSPIC33FJ128GP802-I/MM - dsPIC dsPIC™ 33F Microcontroller IC 16-Bit 40 MIPs 128KB (128K x 8) FLASH 28-QFN-S (6x6) from Microchip Technology. from now! |
| 分类 |
商业参数
| 最小起订量 | 162 | 产品 | DSCs |
| 单位包装 | 61 | 其他名称 | DSPIC33FJ128GP802IMM |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 61 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 输入端 | 21 | 转速 | 40 MHz |
| 定时器 | 5-16-bit,2-32-bit | 存储器 | 128KBytes |
| RAM 大小 | 16 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 2 | 存储器容量 | 16 KB |
| 存储器类型 | Flash | I/O 数量 | 21 |
| 电压范围 | 3-3.6V | 位数 | 16 |
| 核心电压 | :2.75V | 看门狗定时器 | 1 |
| 时钟频率 | 40MIPS | 数据转换器 | A/D 10x10b/12b, D/A 4x16b |
| 最大频率 | 80MHz | 振荡器类型 | Internal |
| 供电电压 | 3.3 V | 模拟输入/输出 | 10-Channel,12-Bit |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | 工作频率 | :40MHz |
| 最小供电电压 | 2.7/3 V | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 重量 | 0.0002 | 包装方式 | Tube |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28QFN-S EP | 冷却的封装 | QFN-S EP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 61 |
| 位数 | 28 | 供应商器件封装 | 28-QFN-S |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| SPG | 61 | 类型 | dSPIC33 |
| 系列 | DSPIC33F | 产品特性 | CAN Controller |
| 基本单元 | :33 | 闪存大小 | :128KB |
| 片内RAM（通道数×位宽） | 10-chx10-bit|10-chx12-bit | 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | dsPIC |
| 内置振荡器 | 512kHz, 7,37MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 射频系列/标准 | dSPIC33 |
| 宏单元数量 | 2 | ||
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
