点击放大查看

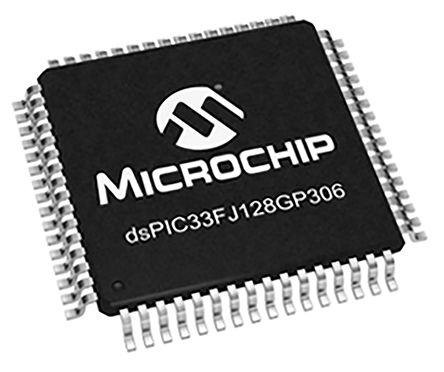

DSPIC33FJ128GP306-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | Buy now, ships today. DSPIC33FJ128GP306-I/PT - dsPIC dsPIC™ 33F Microcontroller IC 16-Bit 40 MIPs 128KB (128K x 8) FLASH 64-TQFP (10x10) from Microchip Technology. View datasheets, pricing and availability from DigiKey now! |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | DSCs |
| 单位包装 | 160 | 其他名称 | DSPIC33FJ128GP306IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 160 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 53 | 转速 | 40 MHz |
| 定时器 | 9-16-bit,4-32-bit | 存储器 | 128KBytes |
| 以太网 | 0 | RAM 大小 | 16 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 接口 | I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 8 | EEPROM容量 | 0Byte |
| 存储器容量 | 128KByte | 存储器类型 | FLASH |
| 显示类型 | no | I/O 数量 | 53 |
| 电压范围 | 3-3.6V | 位数 | 16 |
| 核心电压 | :2.75V | 看门狗定时器 | 1 |
| 时钟频率 | 40MIPS | 数据转换器 | A/D 18x10b/12b |
| 最大频率 | 80MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 数字I/O线数 | 53pins | 分辨率（位） | 16bit |
| 通道数量 | 2 | 模拟输入/输出 | 18-Channel,12-Bit |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | 工作频率 | :40MHz |
| ADC/DAC 数量 | 18channels | 最小输入电压 | 3.6V |
| 最小供电电压 | 3...3.6V | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 重量 | 0.006667 | 包装方式 | TRAY |
| 端接方式 | :SMD | 引脚间距 | :0.5mm |
| 安装类型 | SMD | 安装样式 | SMD/SMT |
| 引脚数 | :64 | 封装形式 | 64TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | 10 |
| 位数 | :33FJ128GP306 | 供应商器件封装 | 64-TQFP (10x10) |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| SPG | 10 | USB | no |
| 类型 | :Fixed / Floating Point | 系列 | DSPIC33F |
| 产品特性 | DMA | 基本单元 | :33 |
| 匹配码 | DSPIC33FJ128GP306-I/PT | CAN编号 | 0 |
| 闪存大小 | :128KB | SPI编号 | 2 |
| 片内RAM（通道数×位宽） | 18-chx10-bit|18-chx12-bit | 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| 架构 | Harvard 16bit | 连接性 | I²C, IrDA, LIN, SPI, UART/USART |
| 核心处理器 | dsPIC | 内置振荡器 | 512kHz, 7,37MHz |
| 单元数量 | 1 | 定时器数量 | 9 |
| 标准交期 | 14 weeks | 射频系列/标准 | dSPIC33 |
| 宏单元数量 | 4 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | ||
