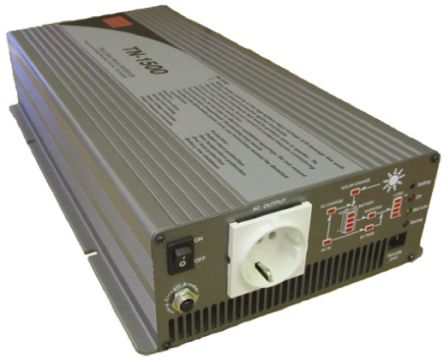

TN-1500-212B
| 制造商 | MEAN WELL Enterprises Co., Ltd. |
| 描述 | Power Conditioning 1500W 12VDC 230VAC Solar Charger, GFCI 1500W DC-AC Car Power Inverter, 10.5 to 15V dc / 230V ac Power Inverters 1500W 12VDC 230VAC Solar Charger, GFCI MEAN WELL is one of the leading switching power supply manufacturers in Taiwan. Established in 1982, it gained ISO-9001 certification ... MEAN WELL is one of the leading switching power supply manufacturers in Taiwan. Established in 1982, it gained ISO-9001 certification in 1994. MEAN WELL product lines include AC/DC switching power supplies, DC/DC converters, DC/AC inverters and battery chargers. Converter: dc/ac; 1500W; Uout:230VAC; Out: mains 230V; 10.5÷15VDC TN-1500-212B from Mean Well, 1500 Watt, Single Output 1500W 直流-交流汽车电源逆变器, 10.5 → 15V dc / 230V ac |
| 分类 |
商业参数
| 产品 | Inverters | 产品类别 | Power Inverters |
合规参数
| RoHS | RoHS Compliant | 防护类型 | fuse, anti-overload, anti-overvoltage, short circuit protection, thermal |
电气参数
| 输出端 | 100-240VAC | 效率 | 88% |
| 输出风扇 | 3-Pin GFCI Socket | 输出类型 | Pure Sine Wave |
| 最大功率 | 1500 Watts | 输出功率 | 1500W |
| 输出信号 | 纯正弦波 | 功率（瓦） | 88% |
| 电视失真度 | ≤4% | 转换器类型 | dc/ac |
| 额定输出功率 | 3000W | 额定电压 | 10.5 → 15V dc |
| 供电电压 | 10.5...15V DC | 输出浪涌功率 | 1725 W, 2250 W |
| 最小输入电压 | 12/24/48 VDC | 连续输出功率 | 1500W |
机械参数
| 深度 | 88mm | 宽度 | 220mm |
| 长度 | 420mm | 重量 | 6850g |
| 本体尺寸 | 420 x 220 x 88mm | 连接器类型 | 3 引脚 GFCI 插座 |
| 输入连接器 | screw terminals | 输出连接器 | mains 230V |
产品信息
| 系列 | Mean WellTN-1500 | 产品特性 | pure sinusoid |
| 库存状态 | Please Call | 单元数量 | 1 |
| 应用细节 | photovoltaic cell | ||
环境参数
| 动作时间 | 90000h | 工作寿命 | 90000h |
| 工作温度 | 0°C | 最高温度限值 | +40°C |
