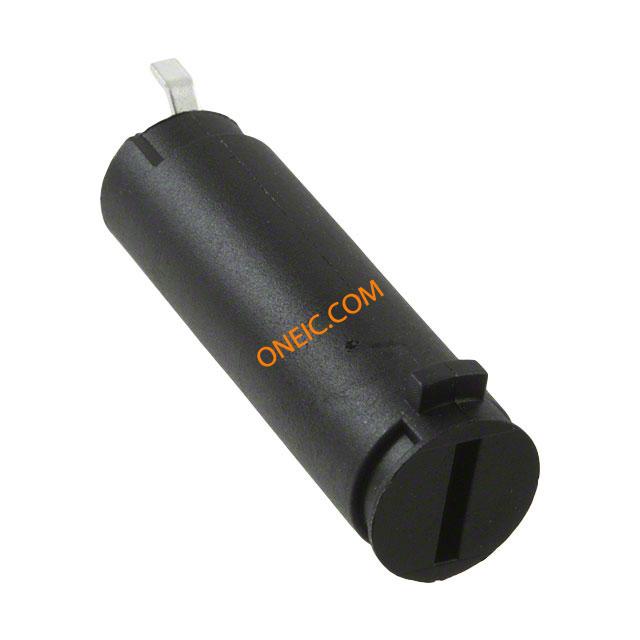

点击放大查看
81500000005
| 制造商 | |
| 描述 | Fuse Holders Accessories 5x20mm / 6.3x32mm PC Mount Cap for shocksafe holder 5x20 CAP FOR 5X20MM FUSE SLOTTED 5x20mm Fuseholder Cap 250V 16A Fuse Holder 2-Pin Bulk CAP, FUSE CARRIER, 20X5MM Adapter; tube fuses; 5x20mm; 6.3A; 250V; -25÷70°C Fuse carrier ø 5 x 20 mm, 81500000005, Littelfuse Littelfuse 聚酰胺 PCB 固定熔断器座盖, 使用于5 x 20mm熔断器, IP40 Fuse Holder Accessories 5x20mm / 6.3x32mm PC Mount |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Caps |
| 单位包装 | 100 | 产品类别 | Fuse Holders Accessories |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | VDE |
电气参数
| 额定电压 | 250 V | 击穿电压 | :4kV |
| 最大额定电流 | 6.3 A | 每极负载侧连接方式 | :Quick Connect / Solder |
机械参数

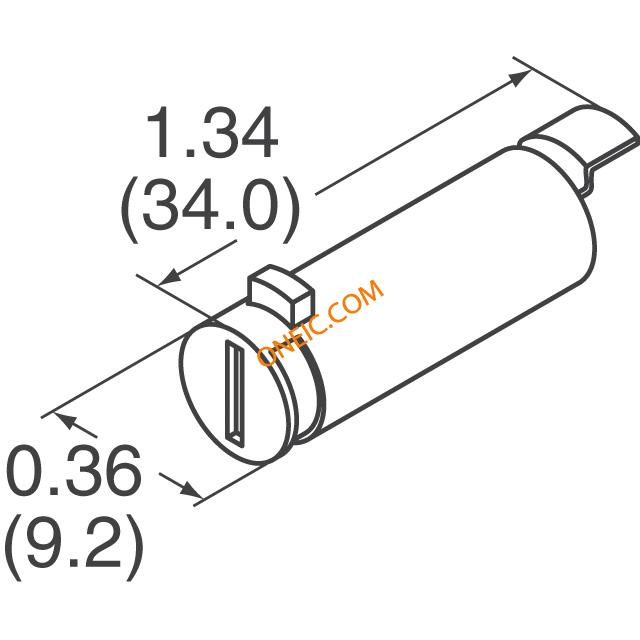

| 尺寸 | 34 mm x 9.2 mm | 深度 | Not Required mm |
| 宽度 | 9.2 mm | 高度 | 34mm |
| 长度 | 34 mm | 重量 | 0.002 |
| 直径 | 9.2mm | 包装方式 | Bulk |
| 基体材料 | Thermoplastic | 安装类型 | :Panel |
| 端子类型 | :Quick Connect | 安装样式 | Snap In |
| 保险丝座类型 | Panel Mount | 总长度 | Not Required mm |
| 包装数量 | 100 | 端接样式 | Screw |
| 外部壳体材料 | PA, Thermoplastic | ||
产品信息
| SPG | 100 | 类型 | Screwdriver Release |
| 系列 | 815 | 保险丝尺寸 | 5 x 20mm |
| 保险丝类型 | 5x20 | 匹配码 | FUH5X20CAP |
| 附件类型 | Cap (Cover) | 单元数量 | 1 |
| 关联项目 | 80000000005, 81100000005 | 标准交期 | 14 weeks |
| 附带电池数量 | :1 | 适用产品/相关产品 | Fuse Holders, No. 800 5 x 20 mm |
环境参数
| NEMA 机架尺寸 | :IP40 | 防护等级 | YesY/N |
| 工作温度 | - 25 C to + 70 C | 结工作温度 | 70C |
文档与媒体
相关型号
81000000005
Littelfuse
Fuse Holders ACS HOLDER 810 250V FUSE HOLDER CART 250V 6.3A PCB Fuse Holder Through Hole Bulk FUSE HOLDER, 5 X 20MM, PCB MOUNT Fuse holder 810 ø 5 x 20/6.3 x 32 mm, 81000000005, Littelfuse Fuse Holder ACS HOLDER 810 250V ACS Universal Shocksafe PC.Boar

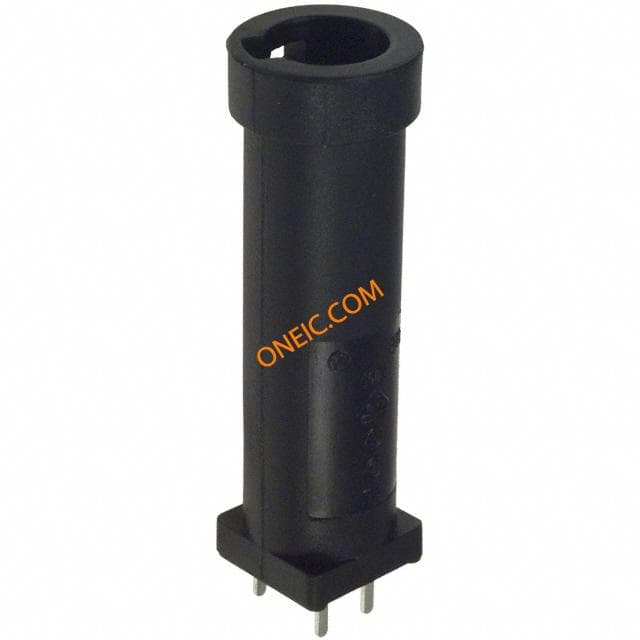

81100000005
Littelfuse
Fuse Holders ACS HOLDER 811 250V ACS Universal Shocksafe PC.Boar FUSE HOLDER CART 250V 6.3A PCB 5x20mm/6.3x32mm Fuseholder 250V 6.3A Fuse Holder 2-Pin Bulk FUSE HOLDER BODY, VERTICAL PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT Fuse holder; tube fuses; Mounting: PCB; 5x20mm,6,3x32mm; -25÷70°C Fuse holder 811 ø 5 x 20/6.3 x 32 mm, 81100000005, Littelfuse Littelfuse 6.3A 槽式 帽盖 PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder ACS HOLDER 811 250V
81300000005
Littelfuse
Fuse Holders 5x20mm / 6.3x32mm MINIATUREFUSEHOLDERS PC Mount horizontal 5x20/6.3x32 FUSE HOLDER CART 250V 6.3A PCB Fuse Holder 5x20mm / 6.3x32mm MINIATUREFUSEHOLDERS

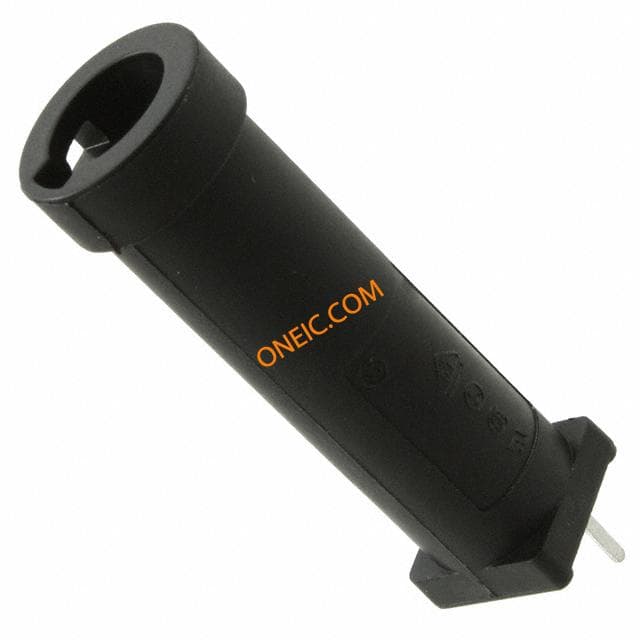

81400000005
