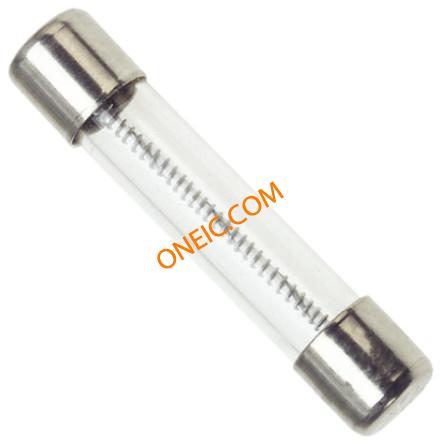

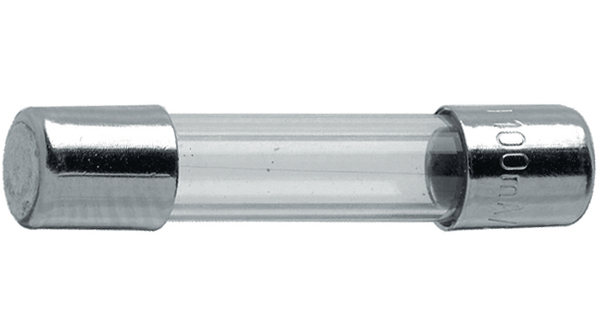

0313003.HXP

点击放大查看

0313003.HXP

制造商
Littelfuse, Inc.
描述
Fuses 250V 3A Slo-Blo Fuse Miniature Slow Blow Acting 3A 250V Holder Cartridge 6.3 X 32mm Glass Bulk FUSE 250V SB 3AG PB-FREE 3A FUSE 250V SLO-BLO 3AG 3A CART Time Lag 6.3x32mm Fuse 250V 3A Cartridge Fuses 250V 3A Slo-Blo Fuse;Cylinder;SlowBlow;3A;Sz3AG;Supplemental;Dims0.25x1.25";Glass;Cartridge Fuse: fuse; time-lag; glass; 3A; 250VAC; 6,3x32mm; Package: in bulk sale Fuse 6.3 x 32 mm: 3 A slow-blow,313, 0313003.HXP, Littelfuse Littelfuse T熔断速度 3A 管式熔断器 0313003.MXP, 6.35 x 31.75mm
分类
电路保护解决方案保险丝管状保险丝
对参数有疑问？问 AI 助手

商业参数

最小起订量1产品Specialty Fuses
单位包装0产品类别Fuses
标准包装数量100工厂包装数量100

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
认证机构CE, CSA, K-MARK, PSE, UL

电气参数

指示器Without Indicator电阻0.0588 Ohms
熔断I²t200响应时间Slow
特性（如C表示电容）slow-blow额定电压250 V
最大频率T中断输出10 kA at 125 VAC / 100 A at 250 VAC
供电电压100 A @ 250 V 交流直流冷态电阻0.0593 Ohm
直流电阻（DCR）0.0588Ohms最大额定电流3 A
保险丝特性time-lag最小输入电压100 A @ 250 V ac
最小供电电压100A

机械参数

尺寸3AG高度31.75mm
长度32重量5.67 g
直径6.35 mm包装方式Bulk
端接方式Cartridge基体材料Glass
安装类型Holder安装样式Holder
封装形式31.75 mm驱动力T
本体材料Glass总长度31.75
刀片材料Glass包装数量100
主要材料Cylinder尺寸/外形31.75 mm L x 6.35 mm D
端接样式Clip触点数2
供应商器件封装Cartridge Fuses外径-未扩张6.3 x 32 mm

产品信息

SPG100外形Glass tube
类型Axial Lead and Cartridge Fuse类别Supplemental
能量200A2s系列313
保险丝尺寸3AG (6.3 mm x 32 mm)保险丝类型Time Delay / Slow Blow
制造商全称313PSeries产品子类型Glass Fuse
单元数量5

环境参数

必须动作（继电器术语，指必须吸合）Slow Blow工作温度- 55 C to + 125 C

文档与媒体

PDF 文档
313P_315P.pdf
