BL-OP30-060
| 制造商 | Lighting Science Group Corporation |

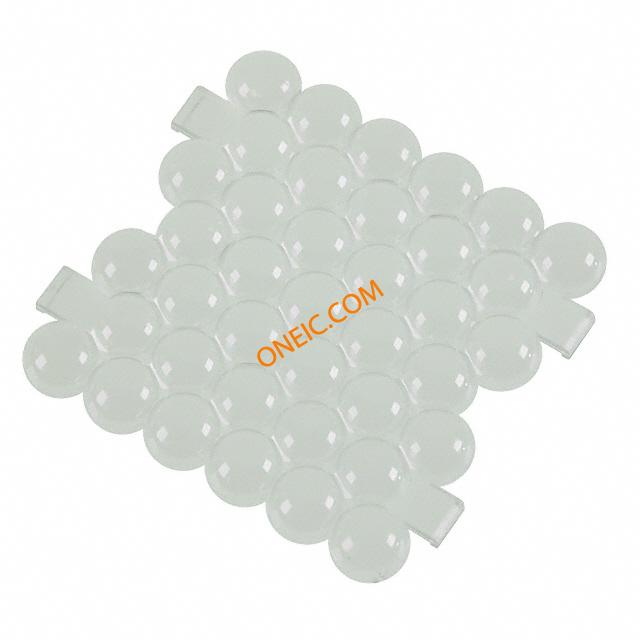

| 描述 | LED Lighting Lenses Optic 3000 Series 70 Deg Low Profile LENS OPTIC 60DEG FOR BL-3000 SER |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Lamina | 其他名称 | 521-1020 |
| 产品类别 | LED Lighting Lenses | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 视角 | 60 deg | 光学模式 | Wide Flood |
机械参数
| 颜色 | Clear | 形状 | Round |
| 宽度 | 25.95 mm | 高度 | 2.59 mm |
| 长度 | 28.13 mm | 包装方式 | Bulk |
| 安装类型 | Adhesive, Attachment Tab | 透镜样式/尺寸 | Round with Cluster Top, 25.95mm x 28.13mm |
产品信息
| 类型 | Lenses | 样式 | Transparent |
| LED数量 | 1 | 适用产品/相关产品 | BL-3000 Series |
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
PDF 文档
