BL-42D2-0344
| 制造商 | Lighting Science Group Corporation |
| 描述 | LED Lighting Modules White 4000 Series 1400mA LED ARRAY WHITE 0.80 SMD |
| 分类 |
商业参数
| 产品 | LED Light Engines | 商标名 | Lamina |
| 其他名称 | 521-1026-2 | 产品类别 | LED Lighting Modules |
| 标准包装数量 | 250 | 工厂包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 4.3V | 波长 | 5500K |
| 光通量 | 120 lm | 额定功率 | 5.9 W |
| 输出电流 | 1.4A | 驱动电路 | Yes |
| LED正向电流 | 1.4 A | LED正向电压 | 4.3 V |
| 最大额定电流 | 1.4A | 主波长 | 5500 K |
机械参数
| 尺寸 | 20.32 mm x 4.06 mm | 颜色 | White, Cool |
| 高度 | 4.06 mm | 直径 | 20.32 mm |
| 包装方式 | Tray | 连接器用途 | No |
| 照明颜色 | Cool White | 显色指数（CRI） | 78 |
产品信息
| 配置 | Star | LED数量 | 1 |
环境参数
| 机械寿命 | Obsolete | 光通量 @ 电流/温度 | 120 lm |
相关型号
EZ-46WH-0354
Lighting Science Group
Cable Assemblies Wire Harness for Atlas EZ Series ASSY CABLE EZCONNECT BL-4000 SER DC Power Cords Wire Harness for Atlas EZ Series
HS-4100-0345
Lighting Science Group
LED Heat Sinks Heatsink 1.0in ATLAS SERIES HEATSINK 1" FOR BL-2000/4000 Heat Sinks - LED Heatsink 1.0in ATLAS SERIES
HS-4150-0345
Lighting Science Group
LED Heat Sinks Heatsink 1.5in Atlas Series HEATSINK 1.5" FOR BL-2000/4000 Heat Sinks - LED Heatsink 1.5in Atlas Series
EZ-4000-0357
Lighting Science Group
LED Lighting Mounting Accessories EZ Connect Board With Connector BOARD EZCONNECT W/CONN BL-4000
HS-4075-0345
Lighting Science Group
LED Heat Sinks Heatsink 0.75in Atlas Series HEATSINK .75" FOR BL-2000/4000 Heat Sinks - LED Heatsink 0.75in Atlas Series
EZ-42D0-0353
Lighting Science Group
LED Lighting Modules White 4000 Series With EZ Board BOARD EZCONNECT W/BL-4000 WHITE
FHS-HWB1-LC01-H
Lighting Science Group
LED Lighting Lenses with Holder Optic 4000 Series Wide with Holder LENS OPTIC WIDE W/HOLDER BL-4000
FHS-HNB1-LC01-H
Lighting Science Group
LED Lighting Lenses with Holder Optic 4000 Series Narrow with Holder LENS OPTIC NARROW W/HLDR BL-4000
FHS-HMB1-LC01-H
Lighting Science Group
LED Lighting Lenses with Holder Optic 4000 Series Medium with Holder LENS OPTIC MEDIUM W/HLDR BL-4000

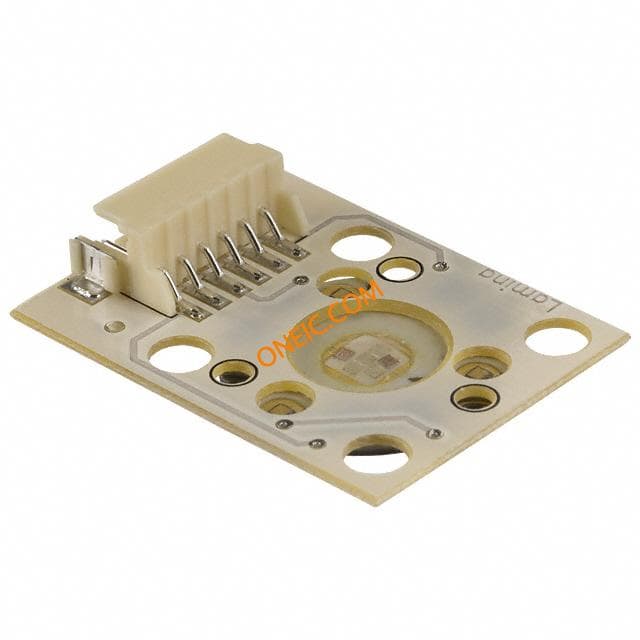

EZ-43F0-0352
Lighting Science Group Corporation
BOARD EZCONNECT W/BL-4000 RGB

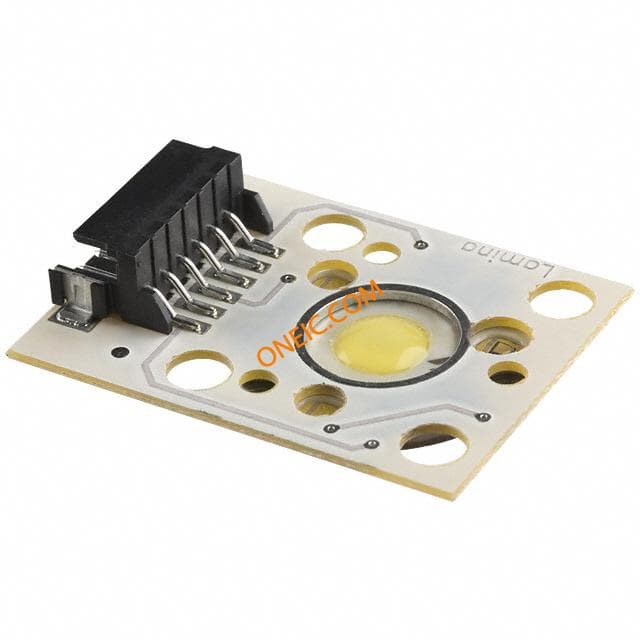

EZ-42D1-0418
