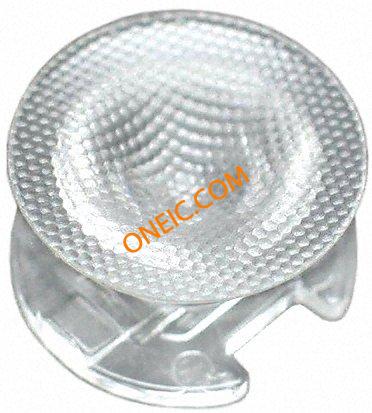

点击放大查看
商业参数
| 标准包装数量 | Trays | 工厂包装数量 | 1001 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85419000 | ||
电气参数
| 光束角 | :± 35° | 视角 | 70° |
| 光学模式 | Wide | ||
机械参数
| 颜色 | Clear | 形状 | Round |
| 宽度 | 26 mm | 高度 | 15.1 mm |
| 长度 | 26 mm | 重量 | 0.0056 |
| 直径 | 26 mm | 包装方式 | Tray |
| 透镜颜色 | :Transparent | 透镜样式 | :Round |
| 透镜尺寸（因值为长宽高，非直径） | :26mm | 透镜材料 | :Polymethylmethacrylate (PMMA) |
| 安装类型 | Adhesive | 透镜样式/尺寸 | Round with Flat Top, 26mm |
产品信息
| 类型 | Lens | 样式 | Transparent |
| 透镜类型 | :Lens without Holder | 附件类型 | :Taped Base Lens without Holder |
| LED数量 | 1 | 其他规格 | Wide Angle |
| 适用产品/相关产品 | Dragon LED series | ||
