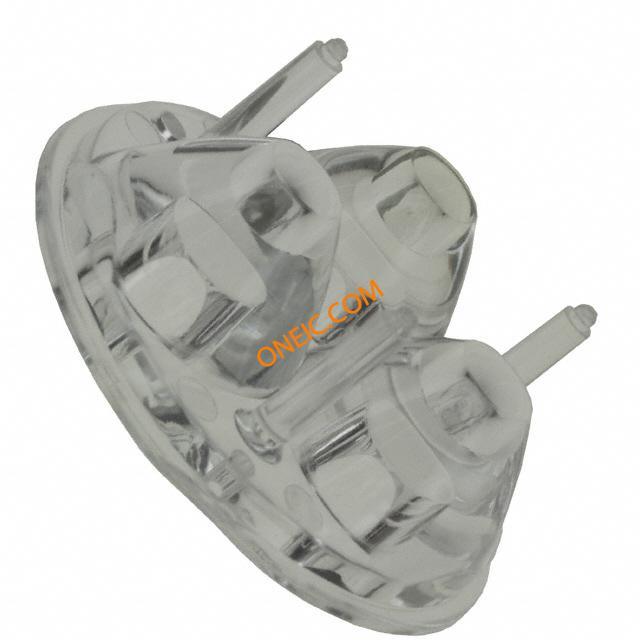

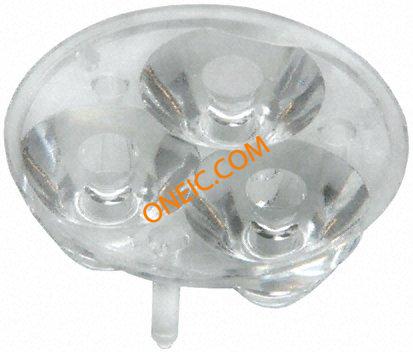

点击放大查看
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 90019000 | ||
电气参数
| 光束角 | :7° | 视角 | 14° |
| 光学模式 | Spot | ||
机械参数
| 颜色 | Clear | 形状 | Round |
| 宽度 | 50 mm | 高度 | 18.37 mm |
| 长度 | 50 mm | 重量 | 0 |
| 直径 | 50 mm | 包装方式 | Tray |
| 透镜颜色 | :- | 透镜样式 | :Round |
| 透镜尺寸（因值为长宽高，非直径） | :50mm | 透镜材料 | :PMMA |
| 安装类型 | Adhesive, Position Pins | 透镜样式/尺寸 | Round with Flat Top, 26mm |
产品信息
| 类型 | Lens | 样式 | Transparent |
| 透镜类型 | :Lens | 附件类型 | :Spot Lens |
| LED数量 | 3 | 其他规格 | Spot |
| 适用产品/相关产品 | Dragon LED series | ||
