商业参数
| 标准包装数量 | Bulk | ||
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250VAC |
| 最大触点电流 | :13A | 绝缘电阻 | :5000Mohm |
机械参数
| 重量 | 0.03575 | 安装类型 | Cable Mount |
| 连接器类型 | :Circular Industrial | 插入角度 | :18-07 |
| 锁定特性 | :Copper Alloy | 材料表面处理 | :- |
| 第一触头极性 | :Pin | 位数 | :7 |
| 外壳尺寸-插件 | :18 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Ringlock Circular | 连接器性别 | PL |
| 系列 | :TRIDENT Ringlock | 测量范围 | :18 |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | :105°C |
文档与媒体
相关型号
192990-1240
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14-16AWG TIN ITT T2P Series Tin Plated Crimp Pin Connector, 16 to 14AWG CRIMP PIN, TIN, 16-14AWG ITT T2P 系列 公 压接端接 圆形 连接器 触芯, 16 → 14 AWG 线规格

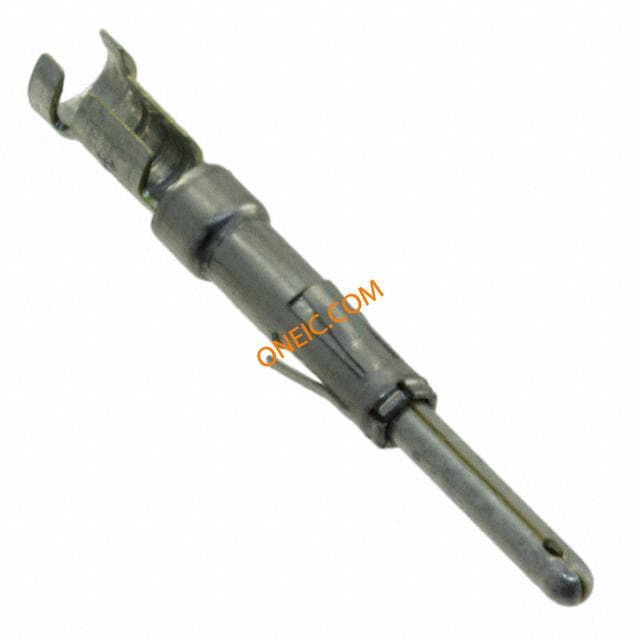

192990-0060
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT TIN PIN 16-18AWG CONTACT, PIN, 18-16 AWG, CRIMP CONTACT, PIN, 20-16AWG, CRIMP
T3P16MC1LX
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP ST CABLE MOUNT LOOSE PIECE CIRCULAR CONTACT, PIN, 16 AWG, CRIMP CONTACT GOLD PIN 16AWG
T3P20MC1LX
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CRIMP PIN, GOLD, 20AWG
TR1807RFH1NBE
itt interconnect solutions
Conn Ringlock Circular SKT 7 POS Crimp ST Panel Mount 7 Terminal 1 Port SOCKET, PANEL, 7WAY
T3P22MC1LX
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT, PIN, 22AWG, CRIMP TRI CON PIN 22 HEAVY GLD MACH
TR18ASR1N
itt interconnect solutions
Connector Accessories Unsealed Cable Clamp For Use With Ringlock Circular Connectors BACKSHELL CABLE CLAMP T 18 BACKSHELL, SIZE 18 BACKSHELL/CABLE CLAMP SHELL 18
TR18AHC1N
ITT CANNON
Connector Accessories Sealed Cable Clamp BACKSHELL, IP65, SIZE 18
T3P24MC1LX
ITT CANNON
CONTACT, PIN, 24 AWG, 13A, CRIMP
