点击放大查看

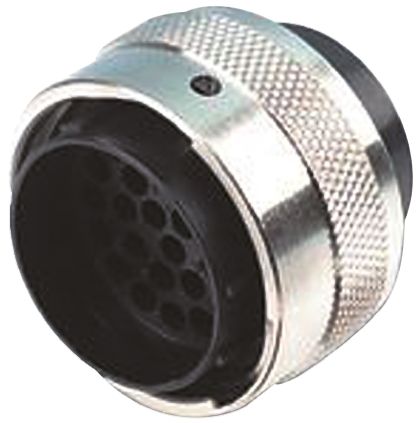

TR2028PMS1NB
| 制造商 | |
| 描述 | 28 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Conn Ringlock Circular PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 28 WAY, CABLE CONN PLUG INLINE 28POS PIN ITT Cannon 系列 28路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250 Vac | 最大额定电流 | 13A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01242 | 直径 | 37.5 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | N (Normal) | 端接方式 | Crimp |
| 触点形式 | 28Signal | 触头类型 | Crimp, Solder and Solder Cup |
| 安装类型 | Straight | 连接器类型 | :Circular Industrial |
| 接触镀层 | Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | Cable | 插入角度 | :20-28 |
| 锁定特性 | :Copper Alloy | 本体材料 | :Nylon (Polyamide) |
| 材料表面处理 | :- | 触头材料 | Copper Alloy |
| 总长度 | 31.8 mm | 第一触头极性 | Male |
| 触点数 | 28 | 位数 | :28 |
| 外壳尺寸-插件 | :20 | 外壳材料及表面处理 | Copper, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Ringlock Circular |
| 连接器性别 | Male | 系列 | :TRIDENT Ringlock |
| 射频系列/标准 | TR | ||
环境参数
| NEMA 机架尺寸 | :IP65 | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | +105°C | ||
