点击放大查看

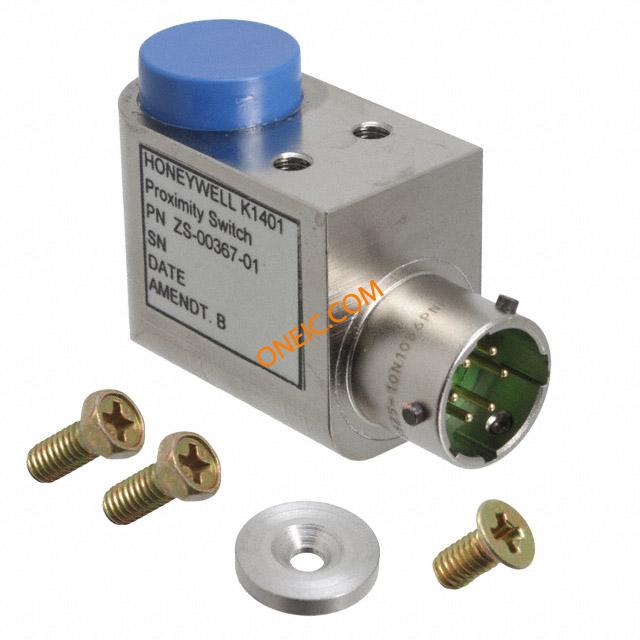

ZS-00367-01
| 制造商 | Honeywell International Inc. |
| 描述 | Proximity Sensors 1PC SENSOR,5-WIRE DC 14-32.5 VDC Proximity Sensor NO Current Sinking 6.07mm 14V to 32.5V Sensors, Proximity Sensors, Environmentally Sealed Proximity Sensors SENSOR 14 VDC TO 32.5 VDC Speed Sensors 1PC SENSOR,5-WIRE DC 14-32.5 VDC Proximity Sensor NO Current Sinking 6.07mm 14V to 32.5V Product Highlights:Hall effect, magnetic field sensitiveHigh frequency switchingSmall housingHigh level of electronics protectionLeadwire or connector terminationFactory mutual certified for Class 1, Division 2, Groups A,B,C,D. AerospaceProximity One Piece Sensor, Harsh Environment 5-wire dc, Special, Aluminium, Crastin (Plastic), NO Current Sink, 14 Vdc to 32.5 Vdc, ZS Series |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Proximity Sensor |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
电气参数
| LED | ABD 0007, 3-22,1-4 | MTU | 120000 |
| 电路 | Yes | 读出方式 | No |
| 输出类型 | Current Sinking | 传感器类型 | Harsh Environment |
| 负载电流 | 600 mA | 传输速率 | RTCA/DO-160C |
| 光谱范围 | RTCA/DO-160C | 开关模式 | NO |
| 额定电压 | 14 | 导体绞线 | RTCA/DO-160C |
| 输出电流 | 10 mA | 感应距离 | Crastin (Plastic) |
| 供电电压 | 14 Vdc to 32.5 Vdc | 绝缘电阻 | 100 Mohm @ 45 V |
| 最小供电电压 | 32.5 | 供电电压 (Vcc/Vdd) | 14 to 32.5 |
| 峰值反向电压（最大） | Yes | 短路电流 | Yes |
机械参数
| 形状 | Special | 重量 | 60 g [2.1 oz] |
| 包装方式 | One Piece Sensor | 第一连接器 | FR8525-10 N 10B6 PNH |
| 安装类型 | Panel | 连接器类型 | FR8525-10 N 10B6 PNH |
| 钻头直径 | No | 压力（PSI） | No |
| 本体材料 | Aluminum | 操作力 | 6g |
| 壳体材料 | Aluminium | 尺寸/外形 | 10mm |
| 导体绝缘 | RTCA/DO-160C | 安装距离（如需要透镜） | 3 mm to 3.99 mm [0.118 in to 0.157 in] |
| 线规或范围 - mm² | 6.07 | ||
产品信息
| 系列 | ZS | 射频类型 | RTCA/DO-160C |
| 极性 | Yes | 技术 | ECKO |
| UNSPSC代码 | 41111926 | 失效率 | 120000 |
| 感应对象 | Metallic | UNSPSC商品 | 41111926 Proximity sensors |
| 模块/板类型 | Module | ||
环境参数
| 工作温度 | -40 °C to 70 °C [-40 °F to 158 °F] | ||
