点击放大查看

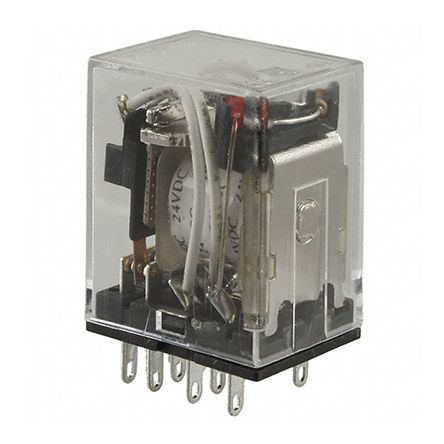

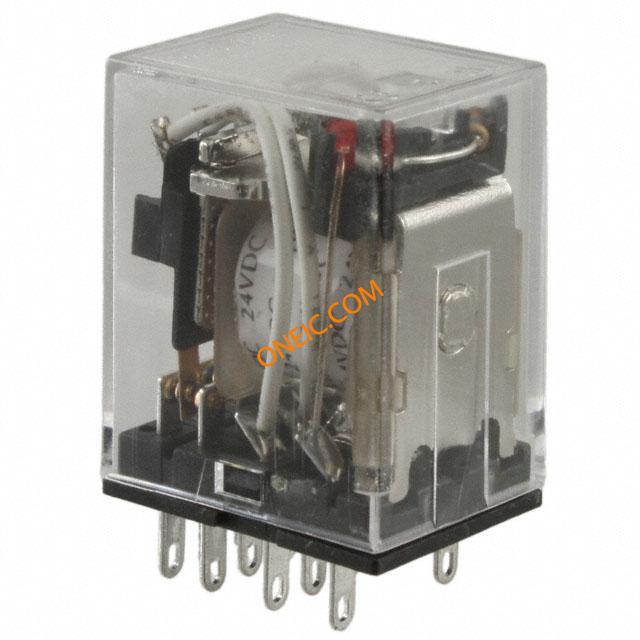

SZR-MY4-N1-DC24V
| 制造商 | |
| 描述 | General Purpose Relays Relay: LED Indicator 4PDT 24 Vdc Electromechanical Relay 4PDT 3A 24VDC 650Ohm Socket Switches, Relays RELAY GEN PURPOSE 4PDT 3A 24V Electromechanical Relay 4PDT 3A 24VDC 650Ohm Socket Product Highlights:A wide range of applications from power to sequence controlDesigned small, four-pole type breaks 3 A loadGold-plated silver contactHigh dielectric strength (1,800 Vac)High reliability and long lifeUltra-high sensitivity with quick response timeHigh vibration and shock resistanceContains LED for output indicatorUL, CE approved RELAY,GP,LEDINDICATOR,PLUG-IN,4PDT 霍尼韦尔(HONEYWELL) 选择开关 SZR-MY General Purpose Relay: LED Indicator; Plug-in/Solder Terminal; 4PDT; 24 Vdc Industrial relay 24 VDC 650 Ohm, SZR-MY4-N1-DC24V, Honeywell Honeywell 4 刀双掷 插入式 非闭锁继电器, 3 A, 24V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | UL档案号 | E#150950 |
| 机构认证与标准 | UL, CE | ||
电气参数
| 重量（负载） | 24 V, 0.8 A | 电压 | 110 % of the rated coil voltage |
| 线圈类型 | Non Latching | 线圈功率 | 900 mW |
| 电感量 | 650 | 线圈电流 | 36.9 mA |
| 线圈电压 | 24V | 释放时间 | 20ms |
| 电流比 | 36.9 mA | 额定功率 | 72W|660VA |
| 可见输出 | Yes | 测试电压 | 1.8 |
| 额定电压 | 10 % min. | 线圈电阻 | 650 Ohms |
| 推频（MHz/V） | No | 供电电压 | 24 VDC |
| 开关电压 | 250 VAC, 125 VDC | 接触电阻 | 50 mOhm max. |
| 峰值脉冲功率 | 660 VA | 开关容量 | 660 VA |
| Vgs(th)（最大）@ Id | 2.4 VDC | 钳位电压 | 19.2VDC |
| 额定交流电压 | 250V | 开关电流 | 3 A@ 220 VAC |
| 额定直流电流 | 72 W | 二极管配置 | No |
| 最大额定电流 | 3 A | 最大开关负载 | 72 W |
| 必须动作电压 | 80 % max. of the Rated Coil Voltage | 基极电阻（R1） | 24 V, 3 A |
| 工作频率 | 18,000 Operations/Hour | 最小输入电压 | 2.4VDC |
| 最小供电电压 | 80 % of the rated coil voltage | 交流开关电压 | 250V |
| 直流开关电压 | 125V | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 3 A |
| 触点额定值 @ 电压 | 125 Vdc | 峰值脉冲电流（8/20µs） | 3 A |
| 直流反向电压（Vr）（最大） | 125V | 高侧电压（自举）最大 | 19.2VDC |
机械参数
| 密封 | Unsealed | 深度 | 28 mm |
| 高度 | 36 mm | 长度 | 21.5mm |
| 重量 | 35 g [1.24 oz] | 包装方式 | Bulk |
| 触点形式 | 4 Form C (4PDT) | 安装类型 | Socket |
| 端子类型 | Solder/Plug-In | 安装样式 | Socket |
| 封装形式 | Dust Cover | 冷却的封装 | Dust Cover |
| 触头材料 | Silver | 总长度 | 21.5 mm |
| 尺寸/外形 | 21.5 x 36 x 28mm | 端接样式 | Solder Lug |
| 触点数 | 14 | 接触件端接 | Plug In |
| 绝缘材料 - 类型 | 1.8kV ac | 位数 | 14 |
| 典型触点布局 | 4PDT | ||
产品信息
| 备注 | LED Indicator; Solder/Plug-in; 4PDT | 类型 | Power Relay |
| 设计类型 | LED | 系列 | SZR-MY |
| 产品特性 | LED Indicator | 功能 | Y |
| 继电器类型 | Non-Latching | 应用领域 | 通用 |
| 按下测试类型 | No | 应用细节 | LED Indicator |
环境参数
| 动作时间 | 20ms | 湿度范围 | 45 % RH to 85 % RH |
| 机械寿命 | 10 Hz to 55 Hz at Double Amplitude of 1.0 mm | 工作寿命 | 100000000（机械）次操作，200000（电气）次操作 |
| 抗冲击能力 | 1000 m/s2 (Approx. 100 G) | 工作温度 | -25C to 75C |
| 最高温度限值 | +75°C | ||
