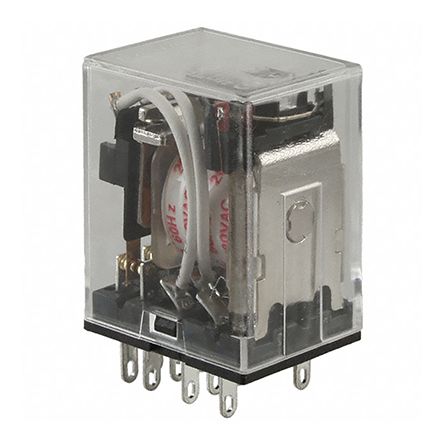

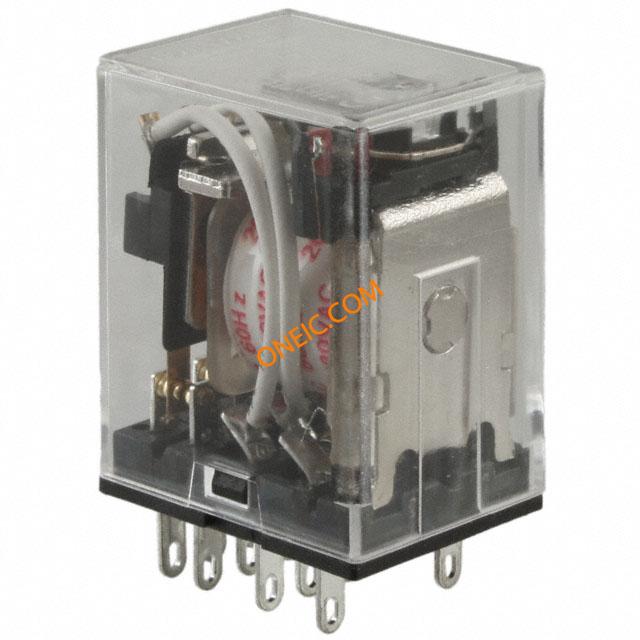

SZR-MY4-N1-AC220V
| 制造商 | |
| 描述 | General Purpose Relays 4PDT 220 Vac LED GEN Purpose Relay Switches, Relays RELAY GEN PURPOSE 4PDT 3A 220V Electromechanical Relay 4PDT 3A 220VAC 12.95KOhm Socket Electromechanical Relay 4PDT 3A 220VAC 12.95KOhm Socket Product Highlights:A wide range of applications from power to sequence controlDesigned small, four-pole type breaks 3 A loadGold-plated silver contactHigh dielectric strength (1,800 Vac)High reliability and long lifeUltra-high sensitivity with quick response timeHigh vibration and shock resistanceContains LED for output indicatorUL, CE approved Relay,GeneralPurpose,LEDIndicator,Plug-In,SolderTerminals,4PDT,220VAC 霍尼韦尔(HONEYWELL) 中间继电器 SZR-MY General Purpose Relay: LED Indicator; Plug-in/Solder Terminal; 4PDT; 220 Vac Industrial relay 220 VAC 12950 Ohm, SZR-MY4-N1-AC220V, Honeywell Honeywell 4 刀双掷 插入式 非闭锁继电器, 3 A, 220V ac |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | UL档案号 | E#150950 |
| 机构认证与标准 | UL, CE | ||
电气参数
| 重量（负载） | 220 V, 1.5 A | 电压 | 110 % of the rated coil voltage |
| 线圈类型 | Non Latching | 线圈功率 | 1.1 VA |
| 电感量 | 12950 | 线圈电流 | 5.3 mA, 5.8 mA |
| 释放时间 | 20ms | 电流比 | 6.2 mA/6.8 mA |
| 释放范围（时间） | 20ms | 测试电压 | 1.8 |
| 额定电压 | 30 % min. | 线圈电阻 | 12.9 kOhms |
| 供电电压 | 220 VAC | 开关电压 | 250VAC, 125VDC - Max |
| 接触电阻 | 50 mOhm max. | 峰值脉冲功率 | 660 VA |
| 开关容量 | 660 VA | Vgs(th)（最大）@ Id | 66 VAC |
| 开关电流 | 3 A@ 220 VAC | 额定直流电流 | 72 W |
| 断态电压 | 66 VAC | 最大额定电流 | 3 A |
| 最大开关负载 | 660 VA | 必须动作电压 | 80 % max. of the Rated Coil Voltage |
| 基极电阻（R1） | 220 V, 3 A | 工作频率 | 18,000 Operations/Hour |
| 最小输入电压 | 220 Vac | 最小供电电压 | 80 % of the rated coil voltage |
| 交流开关电压 | 250V | 直流开关电压 | 125V |
| 平均正向功率 | 0.9 W to 1.1 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 165 VAC |
| 触点额定电流 | 3 A | 触点额定值 @ 电压 | 250 Vac |
| 峰值脉冲电流（8/20µs） | 3 A | ||
机械参数
| 深度 | 36mm | 高度 | 28mm |
| 长度 | 21.5mm | 重量 | 35 g [1.24 oz] |
| 包装方式 | Bulk | 触点形式 | 4 Form C (4PDT-BM) |
| 触点形状 | 4PDT (4 Form C) | 安装类型 | Socketable |
| 端子类型 | Solder/Plug-In | 安装样式 | Socket |
| 操作力 | 20ms | 触头材料 | Silver |
| 尺寸/外形 | 21.5 x 36 x 28mm | 端接样式 | Solder Terminal |
| 触点数 | 4PDT | 接触件端接 | Plug In |
| 绝缘材料 - 类型 | 1.8kV ac | 典型触点布局 | 4 刀双掷 |
产品信息
| 备注 | LED Indicator; Solder/Plug-in; 4PDT | 设计类型 | LED |
| 系列 | SZR-MY | 产品特性 | LED Indicator |
| 功能 | Y | 继电器类型 | General Purpose |
| 应用领域 | 通用 | 应用细节 | LED Indicator |
环境参数
| 动作时间 | 20ms | 湿度范围 | 45 % RH to 85 % RH |
| 机械寿命 | 10 Hz to 55 Hz at Double Amplitude of 1.0 mm | 工作寿命 | 200000（电气）次操作，50000000（机械）次操作 |
| 抗冲击能力 | 1000 m/s2 (Approx. 100 G) | 工作温度 | -25 °C to 75 °C [-13 °F to 167 °F] |
| 最高温度限值 | +75°C | ||
