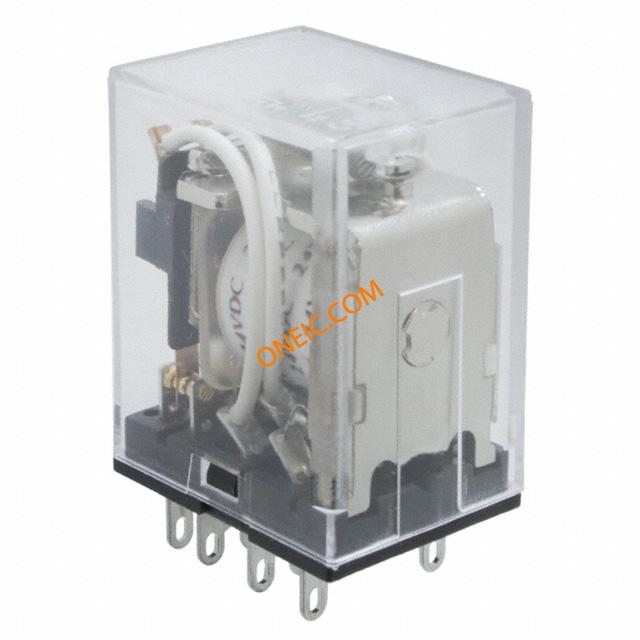

SZR-MY4-1-DC24V
| 制造商 | |
| 描述 | General Purpose Relays 4PDT; 24 Vdc Gen Purpose Relay Electromechanical Relay 4PDT 3A 24VDC 650Ohm Socket Switches, Relays RELAY GEN PURPOSE 4PDT 3A 24V Relay;E-Mech;Power;4PDT;Cur-Rtg 3A;Ctrl-V 24DC;Vol-Rtg 125DC;PCB Mnt;UL; CE Electromechanical Relay 4PDT 3A 24VDC 650Ohm Socket Product Highlights:A wide range of applications from power to sequence controlDesigned small, four-pole type breaks 3 A loadGold-plated silver contactHigh dielectric strength (1,800 Vac)High reliability and long lifeUltra-high sensitivity with quick response timeHigh vibration and shock resistanceUL, CE approved Relay;E-Mech;Power;4PDT;Cur-Rtg3A;Ctrl-V24DC;Vol-Rtg125DC;PCBMnt;UL,CE SZR-MY General Purpose Relay: Standard Relay; Plug-in/Solder Terminal; 4PDT; 24 Vdc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | UL,CE | UL档案号 | E#150950 |
| 机构认证与标准 | UL, CE | ||
电气参数
| 重量（负载） | 24 V, 0.8 A | 电压 | 110 % of the rated coil voltage |
| 线圈类型 | Non Latching | 线圈功率 | 900 mW |
| 线圈电流 | 36.9 mA | 释放时间 | 20ms |
| 电流比 | 36.9 mA | 额定功率 | 72W|660VA |
| 可见输出 | No | 额定电压 | 125VDC |
| 线圈电阻 | 650 Ohms | 推频（MHz/V） | No |
| 供电电压 | 24 V | 开关电压 | 250VAC, 125VDC - Max |
| 接触电阻 | 50 mOhm max. | Vgs(th)（最大）@ Id | 2.4 VDC |
| 钳位电压 | 19.2VDC | 二极管配置 | No |
| 最大额定电流 | 3A | 最大开关负载 | 72 W |
| 必须动作电压 | 80 % max. of the Rated Coil Voltage | 基极电阻（R1） | 24 V, 3 A |
| 工作频率 | 18,000 Operations/Hour | 最小输入电压 | 2.4VDC |
| 最小供电电压 | 80 % of the rated coil voltage | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 3 A |
| 触点额定值 @ 电压 | 125 Vdc | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
机械参数
| 密封 | Unsealed | 深度 | 28 |
| 宽度 | 21.5 mm | 高度 | 36 mm |
| 长度 | 28 mm | 重量 | 35 g [1.24 oz] |
| 包装方式 | Bulk | 端接方式 | Plug-In |
| 触点形式 | 4PDT | 安装类型 | Socket |
| 端子类型 | Solder/Plug-In | 安装样式 | Socket |
| 冷却的封装 | Dust Cover | 触头材料 | Silver |
| 总长度 | 21.5 | 尺寸/外形 | 1.10in.Lx0.85in.Wx1.42in.H |
| 端接样式 | Solder Lug | 触点数 | 14 |
| 接触件端接 | Plug In | 典型触点布局 | 4PDT |
产品信息
| 备注 | Standard Relay; Solder/Plug-in; 4PDT | 类型 | Power Relay |
| 系列 | SZR-MY | 功能 | Power |
| 继电器类型 | Non-Latching | 制造商全称 | SZR-MYSeries |
| 应用细节 | Standard - No Indicator or Diode | ||
环境参数
| 动作时间 | 20ms | 湿度范围 | 45 % RH to 85 % RH |
| 机械寿命 | 10 Hz to 55 Hz at Double Amplitude of 1.0 mm | 抗冲击能力 | 1000 m/s2 (Approx. 100 G) |
| 工作温度 | -25 °C to 75 °C [-13 °F to 167 °F] | 结工作温度 | 75°C |
