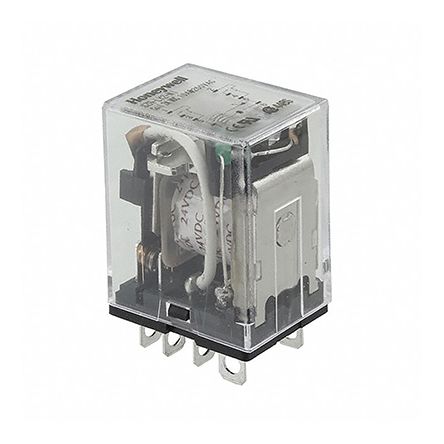

SZR-LY2-N1-DC24V
| 制造商 | |
| 描述 | General Purpose Relays RELAYS PLUG-IN Electromechanical Relay DPDT 10A 24VDC 650Ohm Socket Switches, Relays RELAY GEN PURPOSE DPDT 10A 24V Electromechanical Relay DPDT 10A 24VDC 650Ohm Socket Product Highlights:A wide range of applications from power to sequence controlDesigned small, two-pole type breaks 10 A loadSilver Cadium Oxide contactHigh dielectric strength (1,800 Vac)High reliability and long lifeUltra-high sensitivity with quick response timeHigh vibration and shock resistanceContains LED for output indicatorUL, CE approved RELAY,GP,PLUG-IN,SOLDER,DPDT,24VDC SZR-LY General Purpose Relay: LED Indicator; Plug-in/Solder Terminal; DPDT; 24 Vdc Honeywell 双刀双掷 插入式 非闭锁继电器, 10 A, 24V dc |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL档案号 | E#150950 | 机构认证与标准 | UL, CE |
电气参数
| 重量（负载） | 24 V, 5 A | 电压 | 110 % of the rated coil voltage |
| 线圈类型 | 2 Poles | 线圈功率 | 900 mW |
| 线圈电流 | 36.9 mA | 释放时间 | 25ms |
| 电流比 | 36.9 mA | 额定功率 | 240W|1.1kVA |
| 可见输出 | Yes | 额定电压 | 10 % min. |
| 线圈电阻 | 650 Ohms | 推频（MHz/V） | No |
| 供电电压 | 24 VDC | 开关电压 | 250VAC, 125VDC - Max |
| 接触电阻 | 50 mOhm max. | 峰值脉冲功率 | 1.1 kVA |
| Vgs(th)（最大）@ Id | 2.4 VDC | 钳位电压 | 19.2VDC |
| 额定直流电流 | 240 W | 二极管配置 | No |
| 最大额定电流 | 10 A | 最大开关负载 | 240 W |
| 必须动作电压 | 80 % max. of the Rated Coil Voltage | 基极电阻（R1） | 24 V, 10 A |
| 工作频率 | 18,000 Operations/Hour | 最小输入电压 | 2.4VDC |
| 最小供电电压 | 80 % of the rated coil voltage | 交流开关电压 | 250V |
| 直流开关电压 | 125V | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VDC | 触点额定电流 | 10 A |
| 触点额定值 @ 电压 | 125 Vdc | 峰值脉冲电流（8/20µs） | 10 A |
机械参数
| 密封 | Unsealed | 深度 | 36mm |
| 高度 | 28mm | 长度 | 21.5mm |
| 重量 | 35 g [1.24 oz] | 包装方式 | Bulk |
| 触点形式 | DPDT | 安装类型 | Socket |
| 端子类型 | Solder/Plug-In | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 21.5 | 尺寸/外形 | 21.5 x 36 x 28mm |
| 端接样式 | Quick Connect | 触点数 | 8 |
| 接触件端接 | Quick Connect | 绝缘材料 - 类型 | 1.8kV ac |
| 典型触点布局 | DPDT | ||
产品信息
| 备注 | LED Indicator; Solder/Plug-in; DPDT | 类型 | Power Relay |
| 系列 | SZR-LY | 产品特性 | LED Indicator |
| 功能 | Y | 继电器类型 | Non-Latching |
| 应用领域 | 通用 | 应用细节 | LED Indicator |
环境参数
| 动作时间 | 25ms | 湿度范围 | 45 % RH to 85 % RH |
| 机械寿命 | 10 Hz to 55 Hz at Double Amplitude of 1.0 mm | 工作寿命 | 100000000（机械）次操作，200000（电气）次操作 |
| 抗冲击能力 | 1000 m/s2 (Approx. 100 G) | 工作温度 | -25 °C to 70 °C [-13 °F to 158 °F] |
| 最高温度限值 | +70°C | ||
