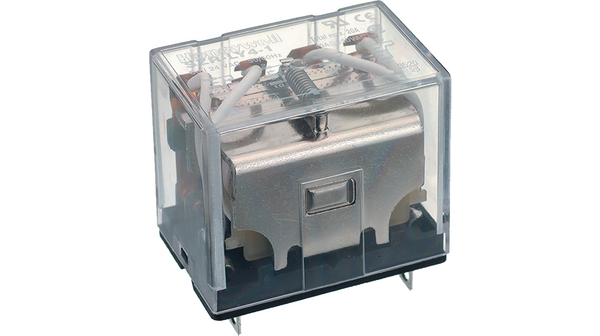

SZR-LY2-1-DC12V
| 制造商 | |
| 描述 | General Purpose Relays RELAYS Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket Switches, Relays RELAY GEN PURPOSE DPDT 10A 12V Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket Product Highlights:A wide range of applications from power to sequence controlDesigned small, two-pole type breaks 10 A loadSilver Cadium Oxide contactHigh dielectric strength (1,800 Vac)High reliability and long lifeUltra-high sensitivity with quick response timeHigh vibration and shock resistanceUL, CE approved Relays SZR-LY General Purpose Relay: Standard Relay; Plug-in/Solder Terminal; DPDT; 12 Vdc Industrial relay 12 VDC 160 Ohm, SZR-LY2-1-DC12V, Honeywell |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL档案号 | E#150950 | 机构认证与标准 | UL, CE |
电气参数
| 重量（负载） | 24 V, 5 A | 电压 | 110 % of the rated coil voltage |
| 线圈类型 | Non-Latching | 线圈功率 | 900 mW |
| 电感量 | 160 | 线圈电流 | 75 mA |
| 释放时间 | 25ms | 电流比 | 75 mA |
| 额定功率 | 240W|1.1kVA | 可见输出 | No |
| 测试电压 | 1.8 | 额定电压 | 10 % min. |
| 线圈电阻 | 160 Ohms | 推频（MHz/V） | No |
| 供电电压 | 12 VDC | 开关电压 | 250 VAC, 125 VDC |
| 接触电阻 | 50 mOhm max. | 开关容量 | 1100 VA |
| Vgs(th)（最大）@ Id | 1.2 VDC | 钳位电压 | 9.6VAC |
| 开关电流 | 10 A@ 24 VDC | 二极管配置 | No |
| 最大额定电流 | 10 A | 最大开关负载 | 240 W |
| 必须动作电压 | 80 % max. of the Rated Coil Voltage | 基极电阻（R1） | 24 V, 10 A |
| 工作频率 | 18,000 Operations/Hour | 最小输入电压 | 1.2VAC |
| 最小供电电压 | 80 % of the rated coil voltage | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC | 触点额定电流 | 10 A |
| 触点额定值 @ 电压 | 125 Vdc | ||
机械参数
| 密封 | Unsealed | 深度 | 28 |
| 宽度 | 21.5 mm | 高度 | 36 mm |
| 长度 | 28 mm | 重量 | 35 g [1.24 oz] |
| 包装方式 | Bulk | 触点形式 | DPDT |
| 安装类型 | Socket | 端子类型 | Solder/Plug-In |
| 安装样式 | Socket | 冷却的封装 | Dust Cover |
| 触头材料 | Silver | 总长度 | 21.5 |
| 端接样式 | Solder Lug | 触点数 | 8 |
| 接触件端接 | Plug In | 典型触点布局 | DPDT |
产品信息
| 备注 | Standard Relay; Solder/Plug-in; DPDT | 类型 | General Purpose Relays |
| 设计类型 | – | 系列 | SZR-LY |
| 继电器类型 | Non-Latching | 应用细节 | Standard - No Indicator or Diode |
环境参数
| 动作时间 | 25ms | 湿度范围 | 45 % RH to 85 % RH |
| 机械寿命 | 10 Hz to 55 Hz at Double Amplitude of 1.0 mm | 抗冲击能力 | 1000 m/s2 (Approx. 100 G) |
| 工作温度 | -25 °C to 70 °C [-13 °F to 158 °F] | ||
