点击放大查看

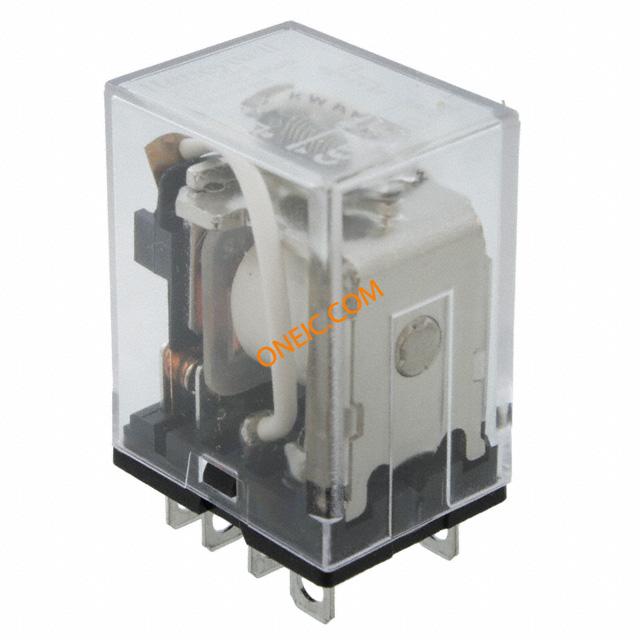

SZR-LY2-1-AC24V
| 制造商 | |
| 描述 | General Purpose Relays RELAYS LIMIT SWITCH Electromechanical Relay DPDT 10A 24VAC 180Ohm Socket RELAY GEN PURPOSE DPDT 10A 24V Relays Industrial relay 24 VAC 180 Ohm, SZR-LY2-1-AC24V, Honeywell |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.2 VA |
| 电感量 | 180 | 线圈电流 | 46mA |
| 释放时间 | 25ms | 额定功率 | 240W|1.1kVA |
| 可见输出 | No | 测试电压 | 1.8 |
| 额定电压 | 125 | 线圈电阻 | 180 Ohms |
| 推频（MHz/V） | No | 供电电压 | 24VAC |
| 开关电压 | 250VAC, 125VDC - Max | 开关容量 | 1100 VA |
| Vgs(th)（最大）@ Id | 7.2 VAC | 钳位电压 | 19.2VAC |
| 开关电流 | 10 A@ 24 VDC | 二极管配置 | No |
| 最大额定电流 | 10 | 最小输入电压 | 7.2VAC |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VAC | 触点额定电流 | 10A |
机械参数
| 密封 | Unsealed | 深度 | 28 |
| 高度 | 42.4 | 包装方式 | Bulk |
| 触点形式 | 2 Form C | 安装类型 | Socket |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 21.5 | 端接样式 | Solder Lug |
| 触点数 | 8 | 典型触点布局 | DPDT |
产品信息
| 类型 | Power Relay | 设计类型 | – |
| 继电器类型 | Non-Latching | ||
环境参数
| 动作时间 | 25ms | 工作温度 | -25...+70 °C |
