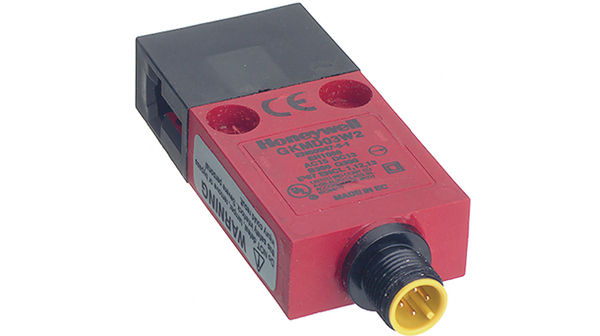

GKMD06
| 制造商 | Honeywell International Inc. |
| 描述 | Keylock Switches GKM SRS MINI KEY GLOBAL MINIATURE SAFETY KEY INTERLOCK SWITCH MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Safety Switches, Key Operated Interlock Electromechanical Switch Key Operated Safety Interlock Switch N.O./N.C. 0.1A Electromechanical Switch Key Operated Safety Interlock Switch N.O./N.C. 0.1A Product Highlights:Positive opening operation of normally closed contactsCompact enclosureSide or top key entryChoice of pre-wired cable or micro-change connectorBottom or side cable exit Bottom or side, or dual connector exitHigh switching current capabilityChoice of two stainless steel keys (Key sold separately)Dust cap for unused key entryUL, CSA, CE, BG SWITCH,SAFETY,KEPOPER,FULLYSEALED GKM Series, Miniature Key Operated Safety Interlock Switch, 2NC Direct Opening, Slow Action, Bottom Exit M12 dc Micro-change Connector, Plastic Housing, Silver-Nickel Contacts Interlocking switches, GKMD06, Honeywell |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 子类别 | Switch Safety Interlock |
| 产品类别 | Keylock Switches | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL档案号 | E37138 | 认证机构 | UL, CSA, CE |
| CSA档案号 | E37138 | 机构认证与标准 | IEC 947-5-1, EN60947-5-1, EN1088, EN60204, UL508, UL746C, CSA22-2-14 |
电气参数
| 电压 | 240 Vac and 250 Vdc Maximum | 最大额定电流 | 100 mA to 10 A (Thermal) |
| 最小供电电压 | 1...50 VAC/DC | 触点额定值 @ 电压 | 100 mA to 10 A |
| 保护电压（VP）（2416） | IP 67 | ||
机械参数
| 端接方式 | Bottom Exit M12 dc Micro-change Connector | 触点形式 | 2 NC |
| 致动器类型 | Key | 操作力 | 50 g per IEC 68-2-27 |
| 总宽度 | 43 x 16 x 69.4 mm | 触头材料 | Silver |
| 壳体材料 | Plastic | 端接样式 | Screw |
| 触点数 | 2 break contacts (NC) | ||
产品信息
| 备注 | IEC 947-5-1, EN60947-5-1, EN1088, EN60204, UL508, UL746C, CSA22-2-14 | 系列 | GKM |
| 钥匙类型 | Miniature | 开关类型 | 2NC Direct Opening, Slow Action |
| UNSPSC代码 | 302119 | 产品子类型 | Key Operated Safety Interlock Switch |
| UNSPSC商品 | 302119 Switches and controls and relays | ||
环境参数
| 振动 | 10 g per IEC 68-2-6 | 机械寿命 | 5 million |
| 防护等级 | IP66/67, NEMA 1, 12, 13, EN60529 | 工作温度 | -25 °C to 85 °C [-13 °F to 185 °F] |
