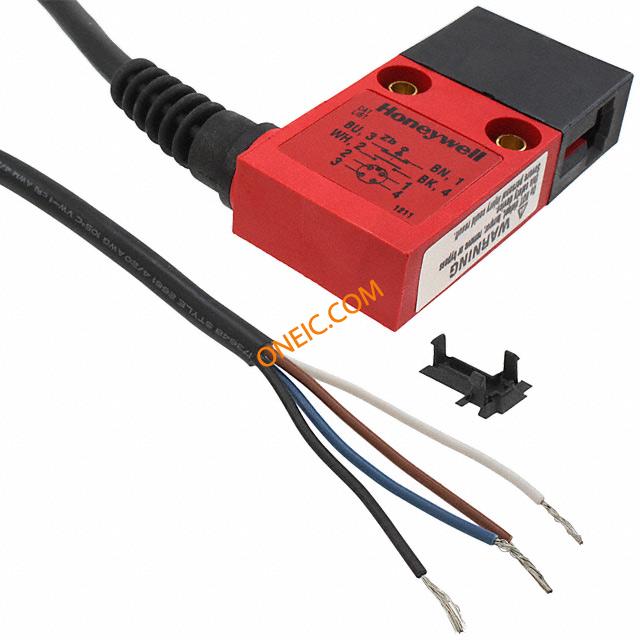

GKMA33
| 制造商 | |
| 描述 | Keylock Switches 100mA to 10A 240VAC 1NC/1NO Dir Opening SWITCH SAFETY INTERLOCK MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Safety Switches, Key Operated Interlock SWITCH COMPACT KEY-OPERATED Electromechanical Switch Safety Interlock Switch N.O./N.C. Electromechanical Switch Safety Interlock Switch N.O./N.C. Product Highlights:Positive opening operation of normally closed contactsCompact enclosureSide or top key entryChoice of pre-wired cable or micro-change connectorBottom or side cable exit Bottom or side, or dual connector exitHigh switching current capabilityChoice of two stainless steel keys (Key sold separately)Dust cap for unused key entryUL, CSA, CE, BG Switch;MiniatureKeyOperated;SafetyInterlock;1NC/1NODirectOpening GKM Series, Miniature Key Operated Safety Interlock Switch, 1NC/1NO Direct Opening, Slow Action, 3 m Side Exit Cable, Plastic Housing, Silver-Nickel Contacts |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 子类别 | Switch Safety Interlock |
| 产品类别 | Keylock Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL档案号 | E37138 | 认证机构 | UL, CSA, CE |
| CSA档案号 | E37138 | 机构认证与标准 | IEC 947-5-1, EN60947-5-1, EN1088, EN60204, UL508, UL746C, CSA22-2-14 |
电气参数
| 电压 | 240 Vac and 250 Vdc Maximum | 最大额定电流 | 100 mA to 10 A (Thermal) |
| 触点额定值 @ 电压 | 100 mA to 10 A | ||
机械参数
| 端接方式 | Side Exit Cable | 电缆长度 | 3 m |
| 触点形式 | 1 NC / 1 NO | 致动器类型 | Key |
| 操作力 | 50 g per IEC 68-2-27 | 触头材料 | Silver |
| 壳体材料 | Plastic | 端接样式 | Wire |
产品信息
| 备注 | IEC 947-5-1, EN60947-5-1, EN1088, EN60204, UL508, UL746C, CSA22-2-14 | 类型 | Interlock |
| 系列 | GKM | 钥匙类型 | Miniature |
| 开关类型 | 1NC/1NO Direct Opening, Slow Action | UNSPSC代码 | 302119 |
| 产品子类型 | Key Operated Safety Interlock Switch | UNSPSC商品 | 302119 Switches and controls and relays |
环境参数
| 振动 | 10 g per IEC 68-2-6 | 机械寿命 | 5 million |
| 防护等级 | IP66/67, NEMA 1, 12, 13, EN60529 | 工作温度 | -25 °C to 85 °C [-13 °F to 185 °F] |
