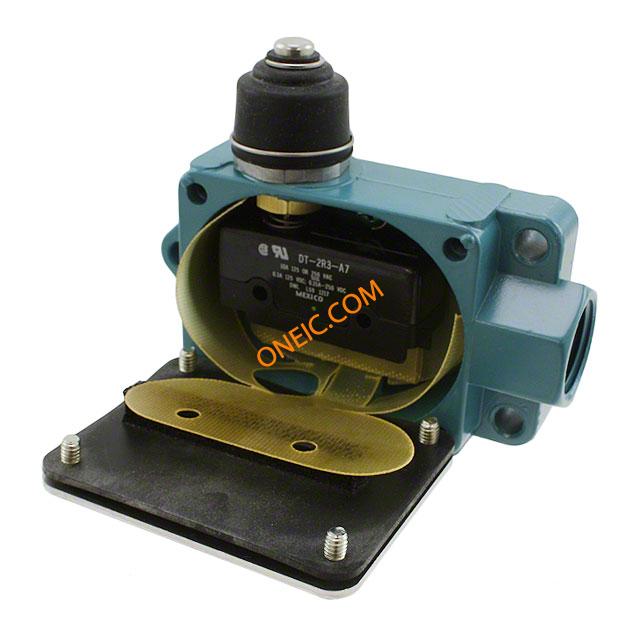

DTF2-2RN-LH
| 制造商 | |
| 描述 | Basic / Snap Action Switches Top Plunger Actuator LEFT Switch Limit N.O./N.C. DPDT Top Plunger Conduit 0.3A 250VDC 11.2N Linear Screw Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Limit Switches, MICRO SWITCH™ Medium-Duty Limit Switches SW 2NC 2NO DPDT SNAP ACTION 125V Limit Switches Top Plunger Actuator LEFT Switch Limit N.O./N.C. DPDT Top Plunger Conduit 0.3A 250VDC 11.2N Linear Screw Mount Product Highlights:Up to 20 ampere capacityCast aluminum housing with three-hole mountingRight or left-handed (sealed or unsealed) actuatorsCover seal, captive cover screwsMomentary or maintained contactUL recognized, file #E12252CSA certified, file #LR41372Sealed to NEMA 1, 3, 4 and 13 requirements Grounding screwPotential Applications:Packaging equipment Special machineryAgricultural machinery ConveyorsOverhead cranes and hoists Switch,Limit;SeriesBAF/DTF;TopPlunger;DPDT;ActuatorPosition-Left Enclosed Switches Series BAF/DTF: Top Plunger Actuator; 2NC 2NO DPDT Snap Action; Actuator Position - Left |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 商标名 | Microswitch |
| 子类别 | Switch Limit | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL档案号 | E12252 | 机构认证与标准 | UL, CSA |
电气参数
| 电路 | DPDT | 额定电压 | 250 V |
| 开关功能 | On-Mom | 供电电压 | 125 Vac, 250 Vac/125 Vdc/250 Vdc |
| 差动行程 | 0.060" (1.5mm) | 最大额定电流 | 10 A |
机械参数
| 密封型 | Industrial | 包装方式 | Bulk |
| 预行程 | 0.140" (3.6mm) | 超行程 | 0.156" (3.96mm) |
| 端接方式 | 0.5 in - 14NPT Conduit | 触点形式 | DPDT - 2 NC / 2 NO |
| 致动器类型 | Plunger | 安装类型 | Chassis Mount |
| 释放力 | 113gf | 操作力 | 11.2 N |
| 壳体材料 | Aluminum Die-Cast | 端接样式 | Screw |
产品信息
| 备注 | With seal boot on plunger; Left-hand actuator position | 系列 | BAF/DTF |
| 产品特性 | Actuator Mounted Left Side | 电路结构 | 2NC 2NO DPDT Snap Action |
| UNSPSC代码 | 39122213 | 产品子类型 | Enclosed Switches |
| UNSPSC商品 | 39122213 Limit Switches | 工作高度 | 2.050" (52.1mm) |
环境参数
| NEMA 机架尺寸 | 1, 3, 4, 13 | 防护等级 | * |
| 工作温度 | -32°C ~ 71°C | ||
