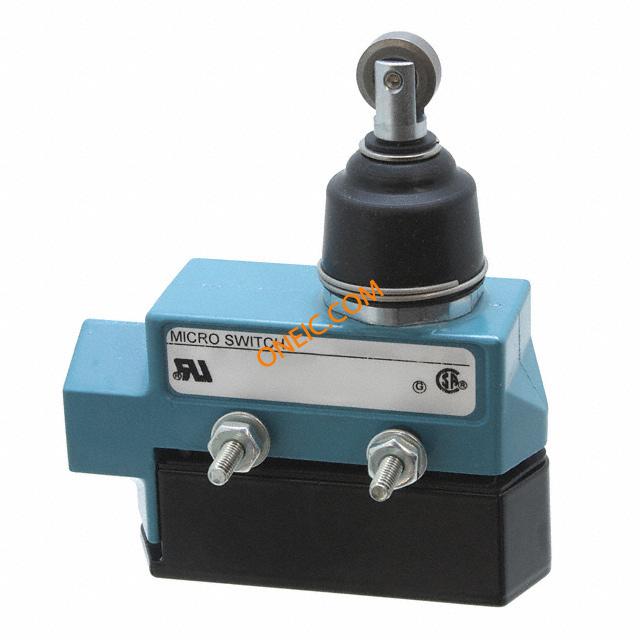

DTE6-2RN80
| 制造商 | |
| 描述 | Basic / Snap Action Switches Top Rollr Plngr Act. 2NC 2NO DPDT SWITCH-ENCLOSED MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Limit Switches, MICRO SWITCH™ Medium-Duty Limit Switches SW 2NC 2NO DPDT SNAP ACTION 125V Limit Switches Top Rollr Plngr Act. 2NC 2NO DPDT Electromechanical Switch Enclosed Switch DPDT 10A Electromechanical Switch Enclosed Switch DPDT 10A Product Highlights:Side or flange mountMomentary or maintained contactGrounding screwHigh capacity (22 amp) availableTemperature range -32 �C to +71 �C [ -25 �F to +160 �F] Zinc Die-Cast housing NEMA 1 UL Recognized, file #E12252 CSA Certified, file #LR41372 NEMA 1, 3, 4 /IP66Pre-leaded or connector termination optionsPotential Applications:Packaging equipment Special machinery Textile machinery Conveyors Construction machinery and equipment Printing trades machinery Overhead cranes and hoists Switch,Limit,Heavy-Duty,Enclosed,TopRollerPlungerAct,DPDT,SnapAction Enclosed Switches Series E6: Top Roller Plunger Actuator; 2NC 2NO DPDT Snap Action; 0.5 in - 14NPT conduit |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 商标名 | Microswitch |
| 子类别 | Switch Misc | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULListed,CSACertified | UL档案号 | E12252 |
| 机构认证与标准 | UL, CSA | ||
电气参数
| 电路 | DPDT | 额定电压 | 250 V |
| 开关功能 | On-Mom | 供电电压 | 125 Vac, 250 Vac/125 Vdc/250 Vdc |
| 差动行程 | 0.060" (1.5mm) | 最大额定电流 | 10 A |
机械参数
| 密封型 | Industrial | 包装方式 | Bulk |
| 预行程 | 0.110" (2.8mm) | 超行程 | 0.125" (3.2mm) |
| 端接方式 | Screws | 触点形式 | DPDT - 2 NC / 2 NO |
| 致动器类型 | Roller Plunger | 安装类型 | Chassis Mount |
| 释放力 | 170gf | 电缆材料 | ZincDie-Cast |
| 安装样式 | SideMount | 封装形式 | Split Housing, Side Mount |
| 操作力 | 5.56 N to 13.34 N | 壳体材料 | Zinc Die-Cast |
| 端接样式 | Screw | ||
产品信息
| 备注 | With seal boot on plunger, Roller parallel to long axis of switch | 类型 | Limit |
| 系列 | E6/V6 | 产品特性 | Actuator Seal Boot |
| 电路结构 | 2NC 2NO DPDT Snap Action | UNSPSC代码 | 39122213 |
| 制造商全称 | E6Series | 产品子类型 | Enclosed Switches |
| UNSPSC商品 | 39122213 Limit Switches | 工作高度 | 2.345" (59.6mm) |
环境参数
| 密封等级 | IP 66 | NEMA 机架尺寸 | 1, 3, 4 |
| 防护等级 | IP54 - Dust Protected, Water Resistant | 温度额定值 | –32°Cto71°C[–25°Fto160°F] |
| 工作温度 | -32°C ~ 71°C | ||
