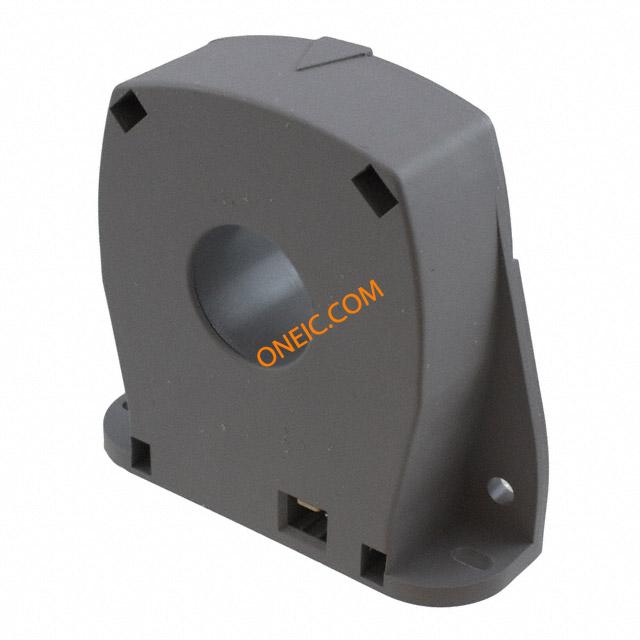

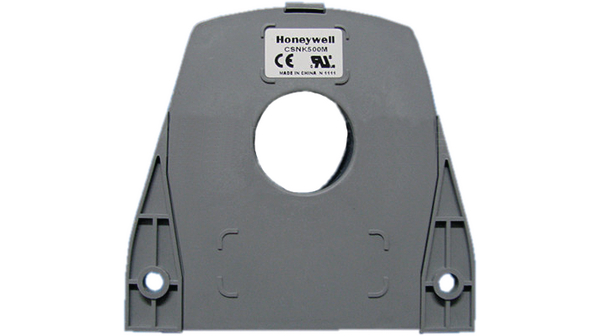

CSNK500M
| 制造商 | Honeywell International Inc. |
| 描述 | Industrial Current Sensors +/-1275 A +/-0.5 % Closed Loop Linear Closed Loop Current Sensor AC/DC Current Current Sensor CL 500A Sensors, Current Sensors, Closed Loop CURRENT SENSOR 500A 1275 AMP Board Mount Current Sensors +/-1275 A +/-0.5 % Closed Loop Linear Current Sensor CLOSED LOOP CURRENT SENSOR CLOSED LOOP CURRENT SENSOR Product Highlights:Current sensing up to 1275 amps (depending on product listing)Measures ac, dc and impulse currentsCompetitive cost/performance ratioRapid responseHigh overload capabilityHigh level of electrical isolation between primary and secondary circuitsIndustrial operating temperature rangeSmall size and weight Sensor,Current,ClosedLoopLinear,15to18VDC,1275A CSN Series closed loop current sensor, measures ac, dc or impulse current, 500 A nominal, ±1275 amp range, 5000 turn, reduced size Current sensor, CSNK500M, Honeywell |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 3 | 交货时间 | 14 Days |
| 单位包装 | 1 | 子类别 | Current Sensors |
| 产品类别 | Industrial Current Sensors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 合规性 | Compliant |
| 无铅定义 | RoHS-conform | ||
电气参数
| 输出端 | 100 mA | 最大电源电流 | 500A |
| 精度 | +/- 0.5 % | 线圈类型 | 5000 |
| 输出类型 | Current | 传感器类型 | Closed Loop |
| 响应时间 | 1µs | 额定电压 | ±15 |
| 线圈电阻 | 50 Ohm | 输出电流 | ±20 mA + output |
| 供电电压 | +/- 15 VDC to +/- 18 VDC | 感应电流 | AC|DC |
| 开关电流 | 100mA | 最大额定电流 | 1275 A |
| 最小输入电压 | -15V | 最小供电电压 | ±18 |
| 直流电阻（DCR）（最大） | 75 Ohm | 空闲电流，典型值 @ 25°C | 500 A RMS |
| 初始电阻（最小） | 0 Ohm | 集电极截止电流（最大） | 10mA |
| 连续漏极电流（Id）@ 25°C | ±1000 A | ||
机械参数
| 包装方式 | Bulk | 本体表面处理 | Rectangular |
| 极化 | Bidirectional | 安装类型 | THT |
| 安装样式 | Panel | 封装形式 | PCB-3 |
| 顶部端接 | 85°C | 壳体材料 | Glass-filled PBT (UL94-V0) |
| 主要材料 | Current | 最小工作高度 | -40°C |
产品信息
| 类型 | Closed Loop Linear | 样式 | Molex (3-way) |
| 系列 | CSN | 功能 | Current |
| 匹配码 | CSNK500M | 技术 | HallEffect |
| UNSPSC代码 | 411121 | 制造商全称 | CSN |
| 测量范围 | 1275A | UNSPSC商品 | 411121 Transducers |
| 模块/板类型 | Module | 标准交期 | 12 weeks |
环境参数
| 工作温度 | - 40 C to + 85 C | 存储/冷藏温度 | -40 °C to 90 °C [-40 °F to 194 °F] |
