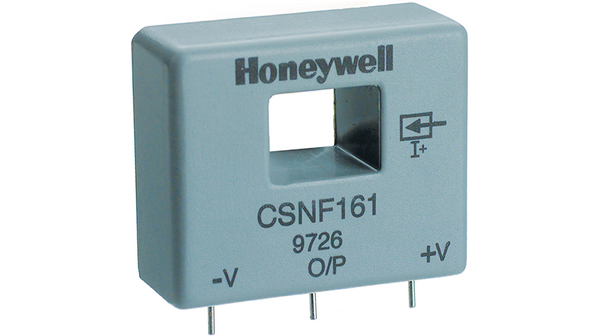

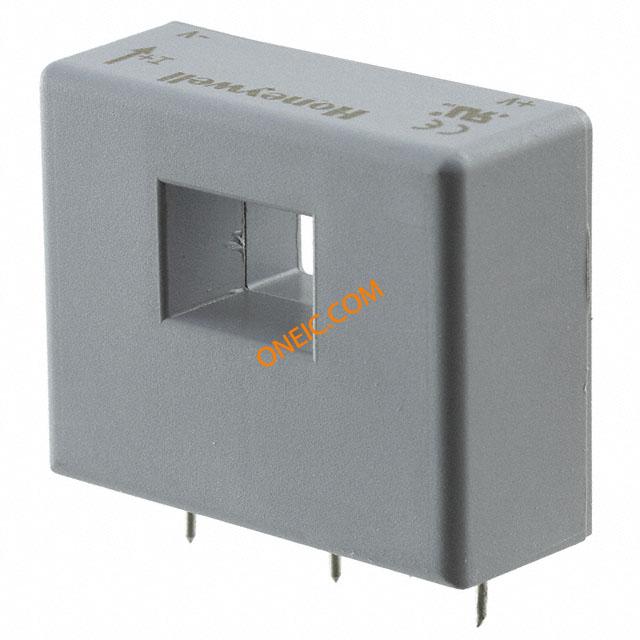

CSNF161
| 制造商 | |
| 描述 | Board Mount Current Sensors Current Sensors/ CURR SENSOR Closed Loop Current Sensor AC/DC Current 15V 3-Pin Sensors, Current Sensors, Closed Loop CURRENT SENSOR 100A 150 AMP Closed Loop Current Sensor AC/DC Current 15V 3-Pin Product Highlights:Current sensing up to 1275 amps (depending on product listing)Measures ac, dc and impulse currentsCompetitive cost/performance ratioRapid responseHigh overload capabilityHigh level of electrical isolation between primary and secondary circuitsIndustrial operating temperature rangeSmall size and weight Sensor,ClosedLoopCurrent,MeasuresAC,DCorImpulseCurrent CSN Series closed loop current sensor, measures ac, dc or impulse current, 100 A nominal, ±150 amp range, center pin, 1000 turn Current sensor, CSNF161, Honeywell |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 42 Days | 子类别 | Current Sensors |
| 标准包装数量 | 30 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 合规性 | Compliant | ||
电气参数
| 输出端 | 100 mA | 电流 | 100 A RMS @ 25 °C |
| 精度 | +/- 0.5 % | 线圈类型 | 1000 |
| 频率 | 150(Max) | 线性度 | ±0.1 % |
| 容差 | ±0.5% | 电阻 | 30 Ohm min., 80 Ohm max. |
| 输出类型 | Current | 传感器类型 | Closed Loop |
| 电流比 | 100 A | 响应时间 | 0.5µs |
| 测试电流 | ±150 A | 额定电压 | 15 |
| 线圈电阻 | 30 Ohm | 输出电流 | ±10 mA + output |
| 供电电压 | +/- 12 VDC to +/- 15 VDC | 感应电流 | AC|DC |
| 开关电流 | 100mA | 次级电压 | 3 kV |
| 输入偏置电流 | ±150A | 最大额定电流 | +/- 150 A |
| 最小供电电压 | ± 12...15 VDC | 直流电阻（DCR）（最大） | 80 Ohm |
| 空闲电流，典型值 @ 25°C | 100 A RMS | 初始电阻（最小） | 30 Ohm |
| 连续漏极电流（Id）@ 25°C | ±150 A | ||
机械参数
| 尺寸 | 36.6 x 14.5 x 29.6 mm | 高度 | 29.6 |
| 长度 | 36.6 | 带宽 | DC...150 kHz |
| 包装方式 | Bulk | 本体表面处理 | Rectangular |
| 端接方式 | Solder | 极化 | Bidirectional |
| 安装类型 | PCB on 3 pins | 安装样式 | PCB |
| 封装形式 | Thru Hole PCB Mount | 冷却的封装 | Thru Hole PCB Mount |
| 壳体材料 | Glass-filled PBT (UL94-V0) | 工作尺寸 | 12.5 x 9 mm |
| 位数 | 3 | ||
产品信息
| 备注 | Larger thru hole. | 类型 | Closed Loop Linear |
| 样式 | Center | 系列 | CSN |
| 已删除 | Compliant | 功能 | Current |
| 极性 | Bidirectional | 技术 | HallEffect |
| UNSPSC代码 | 411121 | 制造商全称 | CSN |
| 产品子类型 | Closed Loop Linear | 测量范围 | 150A |
| 测量制式 | 100 mA for 100 A | UNSPSC商品 | 411121 Transducers |
| 模块/板类型 | Module | 输出配置 | Through Hole |
环境参数
| 工作温度 | - 40 C to + 85 C | 存储/冷藏温度 | -40 °C to 90 °C [-40 °F to 194 °F] |
