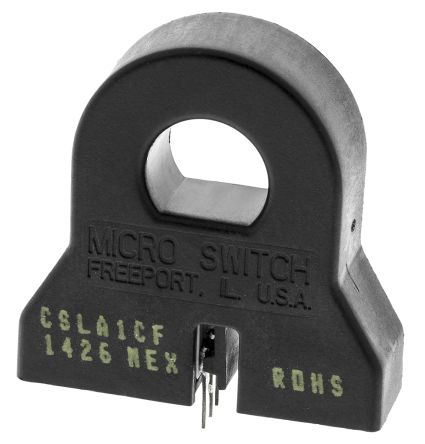

CSLA1CF
| 制造商 | |
| 描述 | Board Mount Current Sensors 100A Bottom Mnt. AC or DC current LINEAR CURRENT SENSORS Sensors, Current Sensors, Open Loop CURRENT SENSOR 100A AC OR DC Open Loop Hall Effect Current Transducer, 0 to 100A, 8 to 16V dc LINEAR CURRENT SENSORS Product Highlights:Linear outputAC or DC current sensingThrough-hole designFast response timeOutput voltage isolation from inputMinimum energy dissipationMaximum current limited only by conductor sizeAdjustable performance and built-in temperature compensation assures reliable operationAccurate, low cost sensingOperating temperature range -25 °C to 85 °CHousing: PBT polyester CurrentSensors CSLA Series linear current sensor, 100 A sensed current, source output, through-hole, operates on AC or DC current, bottom mount Current sensor, CSLA1CF, Honeywell Honeywell 电流传感器, 0 → 100 A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 84 Days | 子类别 | Sensor Misc |
| 产品类别 | Board Mount Current Sensors | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 合规性 | Compliant | ||
电气参数
| 输出端 | Linear Voltage | 输出类型 | Voltage |
| 灵敏度 | 29.7 mV N* ± 2.7 mV N* @ 12 Vdc | 传感器类型 | Open Loop |
| 输入功率 | ± 8...± 16 | 响应时间 | 3 us |
| 输出电流 | 19 mA max. | 供电电压 | 8 VDC to 16 VDC |
| 感应电流 | ± 100 A | 最大额定电流 | 100 A |
| 最小输入电压 | 0 → 100 A | 输入失调电压（最大） | Vcc/2 ± 10 % |
机械参数
| 宽度 | 34.3mm | 包装方式 | Bulk |
| 极化 | Bidirectional | 安装类型 | Through Hole |
| 封装形式 | PCB Bottom Mount | 冷却的封装 | PCB Bottom Mount |
| 总深度 | 10.4mm | 总宽度 | 34.3mm |
| 总高度 | 35.6mm | 壳体材料 | PBT Polyester |
| 总长度 | 10.4mm | 位数 | 3 |
| 外壳尺寸-插件 | 35.56(Max) | 最大电缆长度 | 10.9mm |
| 安装高度（最大） | 35.6mm | 线缆外径（最大） | 10.9mm |
产品信息
| 备注 | * N = Number of Turns | 类型 | Inductive Analog Current Sensor |
| 样式 | 3 pin | 系列 | CSLA |
| UNSPSC代码 | 411121 | 产品子类型 | Inductive Analog Current Sensor |
| UNSPSC商品 | 411121 Transducers | 印刷电路板数量 | 3 |
环境参数
| 热阻 | ±0.05%/°C | 工作温度 | - 25 C to + 85 C |
| 温度系数 | ±0.05%/°C | 存储/冷藏温度 | -40 °C to 100°C [-40 °F to 212 °F] |
