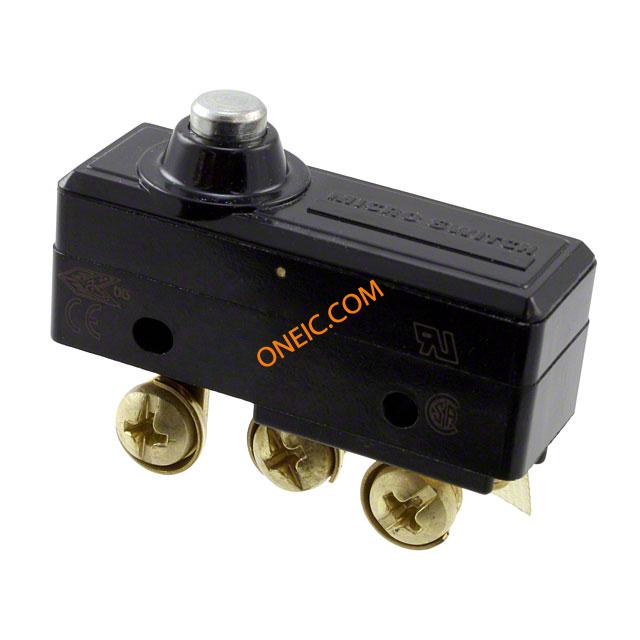

BZ-2RD-P1
| 制造商 | |
| 描述 | Basic / Snap Action Switches Ovrtvl Plngr Actutor Slvr Contcts - screw Switch Snap Action N.O./N.C. SPDT Plunger Screw 16A 600VAC 250VDC 186.42VA 3.61N Screw Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Basic Switches, MICRO SWITCH™ Standard Precision Switches SW PLUNGER SPDT 15A SCREW 125V Switch Snap Action N.O./N.C. SPDT Plunger Screw 16A 600VAC 250VDC 186.42VA 3.61N Screw Mount Product Highlights:Accepted world-wide standard "Large Basic" switchLow operating force and differential travelLong mechanical life up to 20,000,000 cycles at 95% survivalElongated mounting hole for easier, more accurate mountingCurrent rating ranges from 15 A to 25 AChoice of actuation, termination and operating characteristicsPotential Applications:Irrigation systemsSemi-trailer trucksTiming devicesOffice equipmentTest instrumentsMedical/dental equipmentHVAC equipmentManually operated devicesValves Switch,LargeBasic,SPDT,15V BZ Series Standard Basic Switch, Single Pole Double Throw Circuitry, 15 A at 250 Vac, Overtravel Plunger Actuator, 2,5 N - 3,61 N [9 oz - 13 oz] Operating Force, Silver Contacts, Screw Termination, CE, CSA, DEMKO, |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 商标名 | Microswitch |
| 子类别 | Switch Snap Action | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | 5 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 机构认证与标准 | UL, CSA, CE, DEMKO | ||
电气参数
| 电路 | SPDT | 电压 | 250 Vac |
| 额定功率 | 186.42 | 额定电压 | 600 V |
| 开关功能 | On-Mom | 差动行程 | 0.002" (0.05mm) |
| 最大额定电流 | 15 A | 最小输入电压 | 600 |
| 开关功能/额定值 | N.O./N.C. | ||
机械参数
| 深度 | 17.45 | 宽度 | 17,5 mm [0.69 in] |
| 高度 | 38.35 | 密封型 | No |
| 重量 | 28,6 g [0.063 lb] | 材料（通用） | Plastic |
| 包装方式 | Bulk | 预行程 | 0.015" (0.4mm) |
| 超行程 | 0.060" (1.5mm) | 端接方式 | Screw |
| 触点形式 | SPDT | 触头类型 | Silver |
| 致动器类型 | Plunger, Pin | 安装类型 | Screw Mount |
| 释放力 | 113gf | 端子类型 | Screw |
| 操作力 | 2.5 N to 3.61 N | 触头材料 | Silver |
| 壳体材料 | General Purpose Phenolic | 总长度 | 49,3 mm [1.94 in] |
| 执行器材料 | Steel | 端接样式 | Wire |
| 按钮样式/尺寸 | Plunger | 外壳尺寸-插件 | 24,1 mm [0.95 in] |
| 开关驱动电平 | SPDT | 螺纹/螺钉/孔尺寸 | 3,53 mm [0.139 in] |
| 安装面板厚度 | 25,4 mm [1 in] | 外壳与棱镜材料 | N/A/General Purpose Phenolic |
| 最大瞬时扭矩（oz-in / mNm） | 0,33 N m [3.0 in lb] | ||
产品信息
| 备注 | CE: 61058-1; UL: E12252; CSA: LR41370 | 类型 | Basic |
| 系列 | BZ | 产品特性 | Steel Plunger |
| 电路结构 | SPDT | 开关类型 | MICRO SWITCH⢠Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| UNSPSC代码 | 39122209 | UNSPSC商品 | 39122209 Snap switches |
| 工作高度 | 0.835" (21.2mm) | 适用产品/相关产品 | Added overtravel, for manual operation and slow 20 ° max. cam rise |
环境参数
| 机械寿命 | 20,000,000 Cycles | 防护等级 | * |
| 工作温度 | -55°C ~ 85°C | ||
