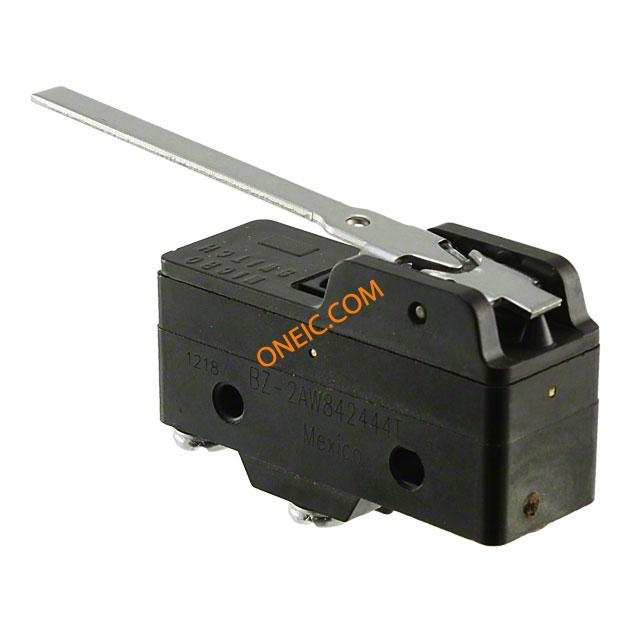

BZ-2AW842444T
| 制造商 | |
| 描述 | Basic / Snap Action Switches Snap Action NO/NC SPDT 15A Thru-Hole Switch Snap Action N.O./N.C. DPDT Straight Lever Screw 15A 480VAC 250VDC 372.85VA 0.56N Screw Mount SW STR LVR DPST 15A SCREW 125V Switch; Basic; BLACK PLUG OVER COMMON INSERT; 15A 125; 250 OR 480 VAC Switch Snap Action N.O./N.C. DPDT Straight Lever Screw 15A 480VAC 250VDC 372.85VA 0.56N Screw Mount Product Highlights:Accepted world-wide standard "Large Basic" switchLow operating force and differential travelLong mechanical life up to 20,000,000 cycles at 95% survivalElongated mounting hole for easier, more accurate mountingCurrent rating ranges from 15 A to 25 AChoice of actuation, termination and operating characteristicsPotential Applications:Irrigation systemsSemi-trailer trucksTiming devicesOffice equipmentTest instrumentsMedical/dental equipmentHVAC equipmentManually operated devicesValves Switch,basic;2.5in.flatlvr;1NCpr,1NOpr,FormZcontacts;15A,125VAC BZ Series Standard Basic Switch, Double Pole Double Throw Circuitry, 15 A at 250 Vac, Straight Lever Actuator, Screw Termination, Silver Contacts, UL, CSA, ENEC |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Basic / Snap Action Switches | 标准包装数量 | 5 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized,CSACertified | 机构认证与标准 | UL, CSA, ENEC |
电气参数
| 电路 | DPST (1-NO, 1-NC) | 电压 | 250 Vac |
| 额定电压 | 480 V | 开关功能 | On-Mom, Off-Mom |
| 差动行程 | 0.020" (0.5mm) | 最大额定电流 | 15 A |
机械参数
| 宽度 | 17,5 mm [0.69 in] | 密封型 | No |
| 重量 | 24,94 g to 34,01 g [0.055 lb to 0.075 lb] | 材料（通用） | Plastic |
| 包装方式 | Bulk | 预行程 | 0.328" (8.3mm) |
| 超行程 | 0.219" (5.6mm) | 端接方式 | Screws |
| 触点形式 | DPDT | 触头类型 | Silver |
| 致动器类型 | Lever | 安装类型 | Chassis Mount |
| 释放力 | 3.5gf | 安装样式 | Mountingholeswillacceptpinsorscrewsof0.139in.maximumdiameteron1.000in.plusorminus0.002centers. |
| 外壳材料（壳体） | HighGradePhenolic | 执行器长度 | 63,5 mm [2.5 in] |
| 操作力 | 0.56 N | 触头材料 | Silver |
| 壳体材料 | General Purpose Phenolic | 总长度 | 49,3 mm [1.94 in] |
| 端接样式 | Screw | 外壳尺寸-插件 | 24,1 mm [0.95 in] |
| 安装孔直径 | 0.14" | 螺纹/螺钉/孔尺寸 | 3,53 mm [0.139 in] |
| 安装面板厚度 | 25,4 mm [1 in] | 最大瞬时扭矩（oz-in / mNm） | 0,33 N m [3.0 in lb] |
产品信息
| 类型 | Basic | 系列 | BZ |
| 电路结构 | DPDT | 开关类型 | MICRO SWITCH⢠Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| UNSPSC代码 | 39122209 | UNSPSC商品 | 39122209 Snap switches |
| 工作高度 | 0.750" (19.1mm) | ||
环境参数
| 机械寿命 | 20,000,000 Cycles | 防护等级 | * |
| 工作温度 | -55°C ~ 85°C | ||
