AML41GBA2
| 制造商 | |
| 描述 | Switch Accessories RECT ILLUM PB SWITCH BASE Manual Switches Lighted Indicators MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH INDICATOR RECTANG ILLUM Rectangular modular indicator Manual Switches Lighted Indicators Product Highlights:Pushbutton style indicators match AML series standard bezel lighted switchesSnap-in surface mountUL recognized, CSA certifiedMetric design for world wide acceptance Switch,INDICATOR,RectangularPushbutton AML41 Series, Solid State Indicator, Square, Pushbutton Style, Lighted, 2 Incandescent Lamp, Snap in panel mount 按钮灯座, 使用于手动开关,微型开关按钮 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 其他名称 | 480-2247 |
| 子类别 | Misc Products | 产品类别 | Switch Accessories |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULListed | ||
电气参数
| 灯类型 | Lighted, 2 Incandescent Lamp | 供电电压 | No Lamp Installed |
| LED正向电压 | No Lamp Installed | 开关功能/额定值 | Momentary |
| 触点额定电流 | 3 A @ 125 V ac | ||
机械参数
| 颜色 | Black | 形状 | Rectangular |
| 宽度 | 29mm | 框架类型 | Black |
| 透镜颜色 | Diffused | 本体尺寸 | 0.75In. |
| 端接方式 | .110 x .020 (Solder or Quick-Connect) | 触点形状 | Rectangular |
| 透镜材料 | Polycarbonate | 安装类型 | Snap-in Panel |
| 端子类型 | Tab | 安装样式 | Snap In |
| 封装形式 | Square | 透镜样式/尺寸 | Rectangle with Flat Top |
| 触头材料 | Gold; Silver | 主要材料 | PilotLight |
| 端接样式 | Solder, Quick Connect | 面板开孔形状 | 19mm |
| 安装孔直径 | 0.75×1.141" | 典型触点布局 | DPDT |
| 面板开孔尺寸（外形） | 28.98mm x 19.05mm (Rectangular) | ||
产品信息
| 备注 | use AML51 button | 类型 | Indicators |
| 系列 | AML41 | 产品特性 | Push Button Style, Black Bezel |
| 透镜类型 | Rectangular | 应用领域 | AML41 Series |
| UNSPSC代码 | 30211913 | 照明类型 | Illuminated |
| 产品子类型 | MICRO SWITCH⢠Indicator | 附件类型 | 微型开关固态指示器 |
| UNSPSC商品 | 30211913 Push button switches | 连接方式 | Solder Lug / Quick Connect |
| 适用产品/相关产品 | Pushbutton Switches | ||
环境参数
| 工作温度 | +55°C | ||
文档与媒体
相关型号
AML91LA73
Honeywell International Inc.
Switch Accessories 14V Lamp T-1 3/4 Wedge Base Incandescent Lamp AML INCANDESCENT LAMP 14 VOLT Lamp; 14 Volts; Incadescent for Pushbutton Switches Lamp,14Volts,IncadescentforPushbuttonSwitches AML91 Series Incandescent Lamp, 14 Volts
AML91LA85
Honeywell International Inc.
Switch Accessories Incandescent Lamp 28 Volts AML INCANDESCENT LAMP 28 VOLT amp; 28 Volts; Incadescent Lamp for Pushbutton Switches T-1 3/4 Wedge Base Incandescent Lamp Lamp;amp,28Volts,IncadescentLampforPushbuttonSwitches AML91 Series Incandescent Lamp, 28 Volts Honeywell T1 3/4 楔形 指示灯 , 28 V, 0.04 A, 7000H寿命
AML51-F10G
Honeywell International Inc.
Switch Accessories LENS RECTANGULAR GREEN Switch Access Push Button Switch Rectangular Button CAP PUSHBUTTON RECTANGULAR GREEN Green rectangular lens for indicator Button;AML11,21,31,41;0.19in.T AML51 Series Rectanguler Button for Pushbuttons Honeywell 绿色 矩形 指示灯透镜

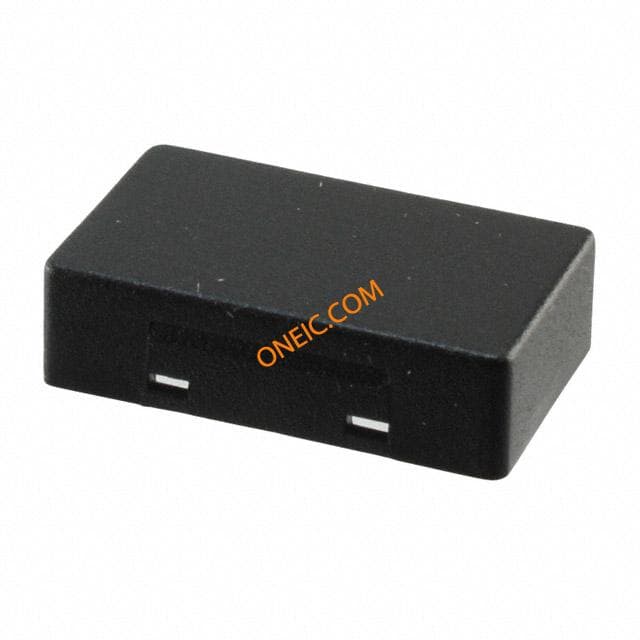

AML51-F10K
Honeywell International Inc.
Switch Accessories Rect. Swch Cap Blk Switch Access Push Button Switch Rectangular Button CAP PUSHBUTTON RECTANGULAR BLACK UnsealedOperatorControls
AML51-F10W
Honeywell International Inc.
Switch Accessories Lens-White Rectangular Switch Access Push Button Switch Rectangular Button CAP PUSHBUTTON RECTANGULAR WHITE White rectangular lens for indicator Button;AML11,21,31,41;0.19in.T AML51 Series Rectanguler Button for Pushbuttons Honeywell 白色 矩形 指示灯透镜
AML51-F10Y
Honeywell International Inc.
Switch Accessories Switch Button Switch Access Push Button Switch Rectangular Button CAP PUSHBUTTON RECT YELLOW Accessory; Button; Rectangular; Yellow; .019" High Accessory,Button,Rectangular,Yellow,.019"High
AML51-F10A
Honeywell International Inc.
Switch Accessories Switch Button Switch Access Push Button Switch Rectangular Button CAP PUSHBUTTON RECTANGULAR AMBER Amber rectangular lens for indicator RectagularButtonforPB,Amber Honeywell 琥珀色 矩形 指示灯透镜
AML71SEB
Honeywell International Inc.
Switch Accessories CTL PB Switch Cap Switch Access Push Button Switch Barrier AML BARRIER BLACK Push Button End Barrier For Use With AML Series Switch Access Push Button Switch Barrier Product Highlights:Fits pushbutton switches and indicatorsProvides protection from contamination from accidental beverage spills, dust, and dirtEasy to install, without tools No effect on display color, light intensity, or legend qualityReplaces seal or change lamps without removing switch from panel Accessory;PanelSeal;Polypropylene(Base),PolyvinylChloride(Cap) AML71 Series Short End Barrier for AML Pushbuttons 按钮端挡板, 使用于AML 系列

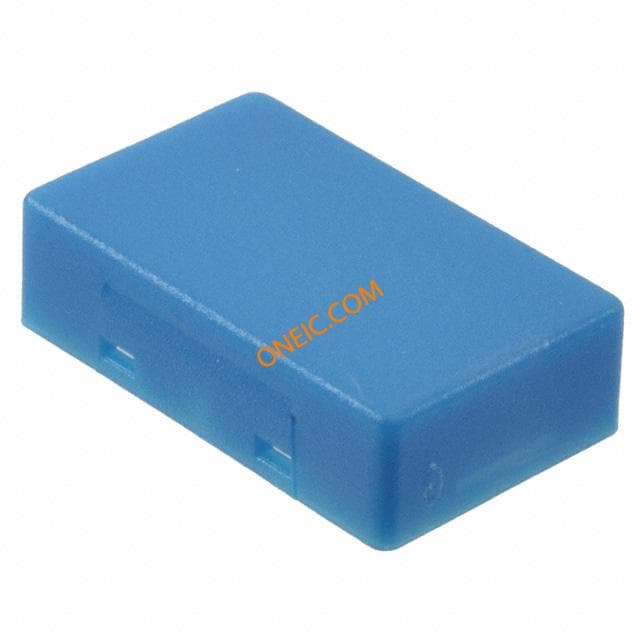

AML51-F10B
