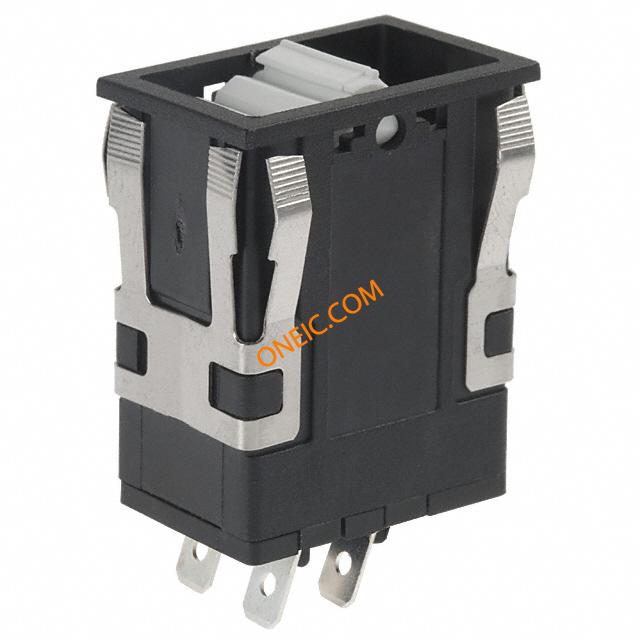

AML34EBA4AC01
| 制造商 | |
| 描述 | Rocker Switches & Paddle Switches DPST 2 Position Unlighted Switch Rocker ON OFF DPST Quick Connect/Solder Rocker 15A 250VAC MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH ROCKER DPST 15A 125V Switch; Rocker; Rectangular; BLACK BEZEL; NON-Lighted Rocker Switches DPST 2 Position Unlighted Switch Rocker ON OFF DPST Quick Connect/Solder Rocker Switch Rocker ON OFF DPST Quick Connect/Solder Rocker Product Highlights:Same circuitry and electrical rating as power duty paddle switches1 or 2 poles Maintained on, off position operationNeon lamp circuitry can be isolated or Integral circuitsUp to 15 A, 125 or 250 VacUL recognizedCSA certifiedPotential Applications:Industrial machinery and equipmentCommercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch,Rocker,Rectangular,BLACKBEZEL,NON-Lighted AML34 Series Rocker Switch, DPST, 2 position, Silver Contacts, 0.187 in x 0.02 in (Solder or Quick-Connect), Non-Lighted, Rectangle, Snap-in Panel |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 其他名称 | 480-2242 |
| 子类别 | Switch Rocker | 产品类别 | Rocker Switches & Paddle Switches |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized,CSACertified | ||
电气参数
| 电路 | DPST | 操作方式 | 134906 |
| 额定电压 | 125V | 极数 | 2 |
| 开关功能 | On-Off | 最大额定电流 | 15A (AC) |
| 最小输入电压 | 250 | 开关功能/额定值 | ON OFF |
| 触点额定值 @ 电压 | 15 A | ||
机械参数
| 深度 | 20.5 | 高度 | 53.4 |
| 包装方式 | Bulk | 端接方式 | 0.187 in x 0.02 in (Solder or Quick-Connect) |
| 触点形式 | DPST | 触头类型 | Silver Contacts |
| 致动器类型 | Rocker | 安装类型 | Panel Mount |
| 端子类型 | Quick Connect|Solder | 接触镀层 | Silver |
| 安装样式 | Snap In | 封装形式 | Non-Lighted, Rectangle |
| 触头材料 | Silver | 总长度 | 30.5 |
| 端接样式 | Quick Connect | 按钮样式/尺寸 | Rocker |
| 位数 | 2 | 开关驱动电平 | DPST |
| 面板开孔尺寸（外形） | Rectangular - 28.98mm x 19.05mm | ||
产品信息
| 类型 | Rocker | 系列 | AML34 |
| 功能 | 2 position | 电路结构 | DPST |
| UNSPSC代码 | 302368 | 照明类型 | Non-Illuminated |
| 制造商全称 | AML34Series | 产品子类型 | MICRO SWITCH⢠Rocker |
| 电气寿命 | 25,000 Cycles | 执行器标记 | Varies by Cap |
| UNSPSC商品 | 302119 Switches and controls and relays | 应用细节 | Industrialmachineryandequipment,commercialaviation,constructionequipment,testinstruments,agriculturalmachinery,processcontrol,medicalinstrumentation. |
环境参数
| 机械寿命 | 25,000 Cycles | ||
