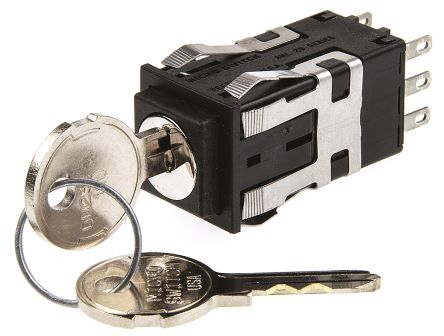

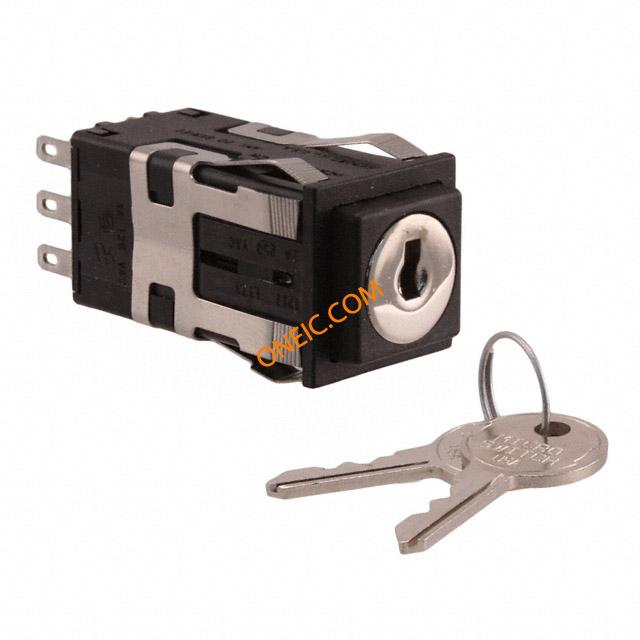

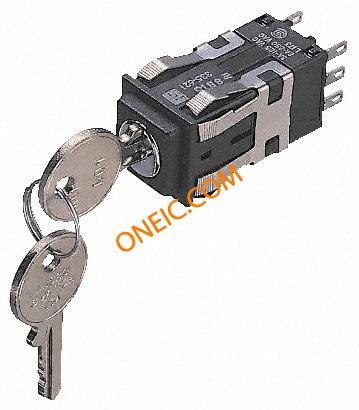

AML27ABK2AC22BA
| 制造商 | |
| 描述 | Keylock Switches Keylock-Snap in DPDT Unlighted MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH KEYLOCK 2POS DPDT 3A 125V Key Switch, DPDT-NO/NC 2-Way Switch Key Lock N.O./N.C. DPDT 90° Flat Key Quick Connect/Solder Panel Mount Switch Key Lock N.O./N.C. DPDT 90° Flat Key Quick Connect/Solder Panel Mount Product Highlights:2 or 3 positions, maintained, (90� throw) and momentary action, (60� throw).5-bit key combinationsUL recognized, CSA certified.Static discharge protection (up to 20 kV when grounded).Potential Applications:Enable control of access to computer peripherals, keyboards, point-of-sale terminals, and security systems which are locked when unattended; and other locations where tampering must be discouraged. Keylock;0.5to250VAC,0.5to30VDC,0.5to125VAC;2;DPDT AML27 Series, Electronic Control Keylock, Square, Key Entry, Unlighted, DPDT, Maintained, Snap in panel mount Honeywell 2位置 钥匙开关, 双刀双掷 - 常开/常闭, 平面钥匙, 焊料，翼片接端 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 子类别 | Switch KeyLock |
| 产品类别 | Keylock Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | ULRecognized,CSACertified |
电气参数
| 电路 | DPDT | 灯类型 | Unlighted |
| 操作方式 | Maintained,Momentary | 额定电压 | 250 V |
| 极数 | 2 | 开关功能 | Maintained |
| 供电电压 | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac | 最大额定电流 | 3 A |
| 开关功能/额定值 | Maintained | 触点额定值 @ 电压 | 2 A to 3 A |
| 最大持续工作电压（MCOV） | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac | ||
机械参数
| 框架类型 | Square | 端接方式 | .110 x .020 (Solder or Quick-Connect) |
| 触点形式 | DPDT | 致动器类型 | Flat Key |
| 安装类型 | Snap-in Panel | 端子类型 | Solder, Tab |
| 行程角度 | 90° | 连接器类型 | 焊料，翼片 |
| 安装样式 | Snap-In | 封装形式 | Square |
| 插入角度 | 90° | 触头材料 | Silver |
| 端接样式 | Quick Connect | 位数 | 2 |
| 衬套/护套类型 | 方形 | 典型触点布局 | DPDT-NO/NC |
产品信息
| 类型 | Keylock | 系列 | AML27 |
| 功能 | Maintained | 钥匙类型 | Flat |
| 电路结构 | DPDT | UNSPSC代码 | 302119 |
| 产品子类型 | Electronic Control Keylock | UNSPSC商品 | 302119 Switches and controls and relays |
| 其他规格 | 90° | 应用细节 | Enablecontrolofaccesstocomputerperipherals,keyboards,point-of-saleterminals,andsecuritysystemswhicharelockedwhenunattended;andotherlocationswheretamperingmustbediscouraged. |
| 键可移除位置 | Center and Right | ||
