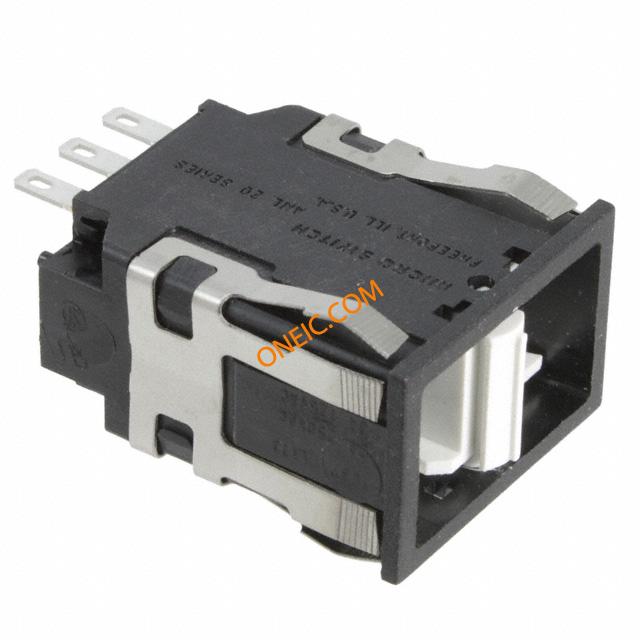

AML24EBA2AA05
| 制造商 | |
| 描述 | Rocker Switches & Paddle Switches SPDT 3 Position Unlighted Switch Rocker (ON) OFF (ON) SPDT Quick Connect/Solder Rocker MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH ROCKER SPDT 3A 125V Switch; Rocker; SPDT; 3 Position; Silver Contacts; Rectangular; On-Off-On Rocker Switches SPDT 3 Position Unlighted Switch Rocker (ON) OFF (ON) SPDT Quick Connect/Solder Rocker Product Highlights:Silver or gold contacts2 or 3 position operationLighted or nonlighted covers for switch housingsToggle type rocker operators permanently installed in rectangular housingsLamps furnished installed or ordered separatelyLamp circuit independent of switch circuitUL recognizedCSA certifiedPotential Applications:Industrial machinery and equipmentCommercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch;Rocker;SPDT;3Position;SilverContacts;Rectangular;On-Off-On AML24 Series Rocker Switch, SPDT, 3 position, Silver Contacts, 0.110 in x 0.020 in (Solder or Quick-Connect), Non-Lighted, Rectangle, Snap-in Panel |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 子类别 | Switch Rocker |
| 产品类别 | Rocker Switches & Paddle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电路 | SPDT | 操作方式 | 134285 |
| 额定电压 | 125V | 开关功能 | Mom-Off-Mom |
| 最大额定电流 | 3A (AC), 2A (DC) | 开关功能/额定值 | (ON) OFF (ON) |
| 触点额定值 @ 电压 | 2 A to 3 A | ||
机械参数
| 包装方式 | Bulk | 端接方式 | 0.110 in x 0.020 in (Solder or Quick-Connect) |
| 触点形式 | SPDT | 触头类型 | Silver Contacts |
| 致动器类型 | Rocker | 安装类型 | Panel Mount |
| 端子类型 | Quick Connect|Solder | 接触镀层 | Silver |
| 安装样式 | Snap In | 封装形式 | Non-Lighted, Rectangle |
| 触头材料 | Silver | 端接样式 | Quick Connect |
| 按钮样式/尺寸 | Rocker | 开关驱动电平 | SPDT |
| 面板开孔尺寸（外形） | Rectangular - 28.98mm x 19.05mm | ||
产品信息
| 系列 | AML24 | 功能 | 3 position |
| 电路结构 | SPDT | UNSPSC代码 | 302119 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Rocker |
| 电气寿命 | 25,000 Cycles | 执行器标记 | Varies by Cap |
| UNSPSC商品 | 302119 Switches and controls and relays | ||
环境参数
| 机械寿命 | 25,000 Cycles | ||
