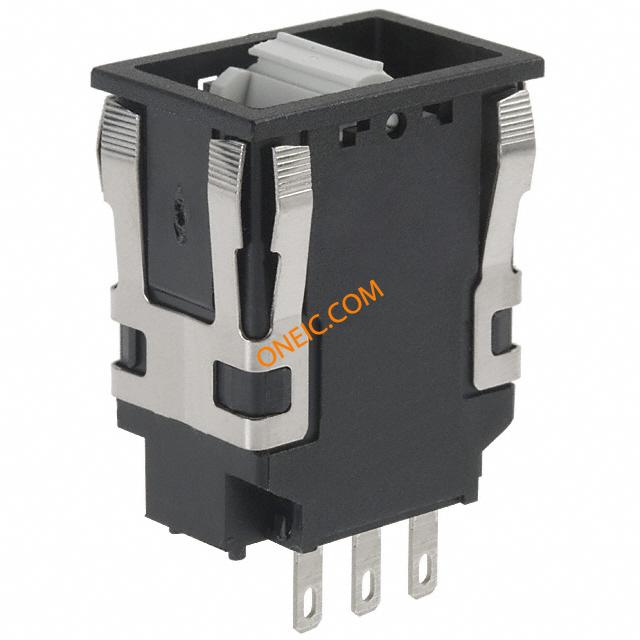

AML24EBA2AA01
| 制造商 | |
| 描述 | Rocker Switches & Paddle Switches 2 Pos. SPDT Non-Lighted Switch Rocker ON None ON SPDT Quick Connect/Solder Rocker MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH ROCKER SPDT 3A 125V Switch; Rocker; 2 Position; MAINT/MAINT; SILVER CONTACTS Rocker Switches 2 Pos. SPDT Non-Lighted Switch Rocker ON None ON SPDT Quick Connect/Solder Rocker Product Highlights:Silver or gold contacts2 or 3 position operationLighted or nonlighted covers for switch housingsToggle type rocker operators permanently installed in rectangular housingsLamps furnished installed or ordered separatelyLamp circuit independent of switch circuitUL recognizedCSA certifiedPotential Applications:Industrial machinery and equipmentCommercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch,Rocker,2Position,MAINT/MAINT,SILVERCONTACTS AML24 Series Rocker Switch, SPDT, 2 position, Silver Contacts, 0.110 in x 0.020 in (Solder or Quick-Connect), Non-Lighted, Rectangle, Snap-in Panel |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 其他名称 | 480-2239 |
| 子类别 | Switch Rocker | 产品类别 | Rocker Switches & Paddle Switches |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized,CSACertified | ||
电气参数
| 电路 | SPDT | 操作方式 | 134273 |
| 额定电压 | 125V | 极数 | 1 |
| 开关功能 | On-On | 最大额定电流 | 3A (AC), 2A (DC) |
| 开关功能/额定值 | ON None ON | 触点额定值 @ 电压 | 2 A to 3 A |
机械参数
| 包装方式 | Bulk | 端接方式 | 0.110 in x 0.020 in (Solder or Quick-Connect) |
| 触点形式 | SPDT | 触头类型 | Silver Contacts |
| 致动器类型 | Rocker | 安装类型 | Panel Mount |
| 端子类型 | Quick Connect|Solder | 接触镀层 | Silver |
| 安装样式 | Snap In | 封装形式 | Non-Lighted, Rectangle |
| 触头材料 | Silver | 端接样式 | Quick Connect |
| 按钮样式/尺寸 | Rocker | 位数 | 2 |

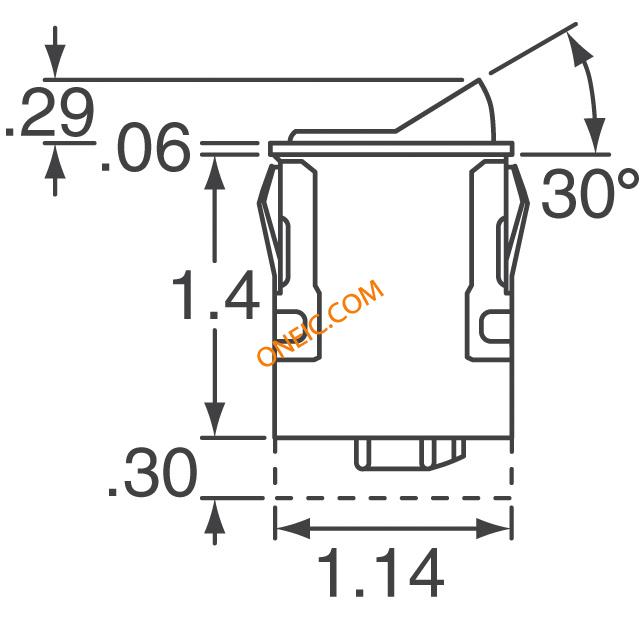

| 开关驱动电平 | SPDT | 面板开孔尺寸（外形） | Rectangular - 28.98mm x 19.05mm |
产品信息
| 类型 | Rocker | 系列 | AML24 |
| 功能 | 2 position | 电路结构 | SPDT |
| UNSPSC代码 | 302115 | 照明类型 | Non-Illuminated |
| 制造商全称 | AML24Series | 产品子类型 | MICRO SWITCH⢠Rocker |
| 电气寿命 | 25,000 Cycles | 执行器标记 | Varies by Cap |
| UNSPSC商品 | 302119 Switches and controls and relays | 应用细节 | Forindustrialmachineryandequipment,commercialaviation,constructionequipment,testinstruments,agriculturalmachinery,processcontrolandmedicalinstrumentationapplicatios |
环境参数
| 机械寿命 | 25,000 Cycles | ||
