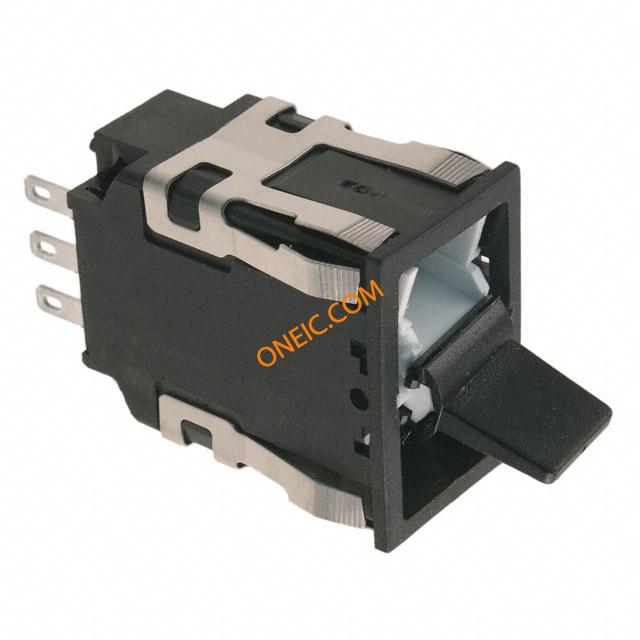

AML23EBA2AC01
| 制造商 | |
| 描述 | Pushbutton Switches DPDT 2 Position Unlighted Switch Rocker ON None ON DPDT Quick Connect/Solder Paddle Rocker MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH TOGGLE DPDT 3A 125V Switch Rocker ON None ON DPDT Quick Connect/Solder Paddle Rocker Product Highlights:Silver or gold contacts 1, 2, or 4 poles 2 or 3 position operationLighted or nonlighted covers for switch housings Toggle type paddle operators permanently installed in rectangular housings Lamps furnished installed or ordered separately Lamp circuit independent of switch circuit UL recognizedCSA certifiedPotential Applications:Industrial machinery and equipmentCommercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SWITCH,PADDLE,DPDT,2POS,SILVERCONT AML23 Series Paddle Switch, DPDT, 2 position, Silver Contacts, 0.110 in x 0.020 in (Solder or Quick-Connect), Non-Lighted, Rectangle, Paddle, Snap-in Panel |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Pushbutton Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电路 | DPDT | 操作方式 | 133970 |
| 额定电压 | 125V | 开关功能 | On-On |
| 额定交流电压 | 125V | 最大额定电流 | 2 A |
| 开关功能/额定值 | ON None ON | ||
机械参数
| 包装方式 | Bulk | 发光颜色 | Non-Illuminated |
| 端接方式 | 0.110 in x 0.020 in (Solder or Quick-Connect) | 触点形式 | DPDT |
| 触头类型 | Silver Contacts | 致动器类型 | Rectangular |
| 电缆开口 | Rectangular - 28.98mm x 19.05mm | 安装类型 | Panel Mount |
| 端子类型 | Quick Connect|Solder | 接触镀层 | Silver |
| 安装样式 | Snap In | 封装形式 | Non-Lighted, Rectangle |
| 触头材料 | Silver | 端接样式 | Quick Connect |
| 按钮样式/尺寸 | Paddle Rocker | 开关驱动电平 | DPDT |
| 面板开孔尺寸（外形） | Rectangular - 28.98mm x 19.05mm | 照明类型及颜色 | Not Required |
产品信息
| 系列 | AML23 | 功能 | 2 position |
| 电路结构 | DPDT | UNSPSC代码 | 30211908 |
| 电路类型 | DPDT | 照明类型 | Non-Illuminated |
| 产品子类型 | MICRO SWITCH⢠Paddle | 电气寿命 | 25,000 Cycles |
| UNSPSC商品 | 30211908 Paddle switches | 输出配置 | Panel Mount, Snap-In |
