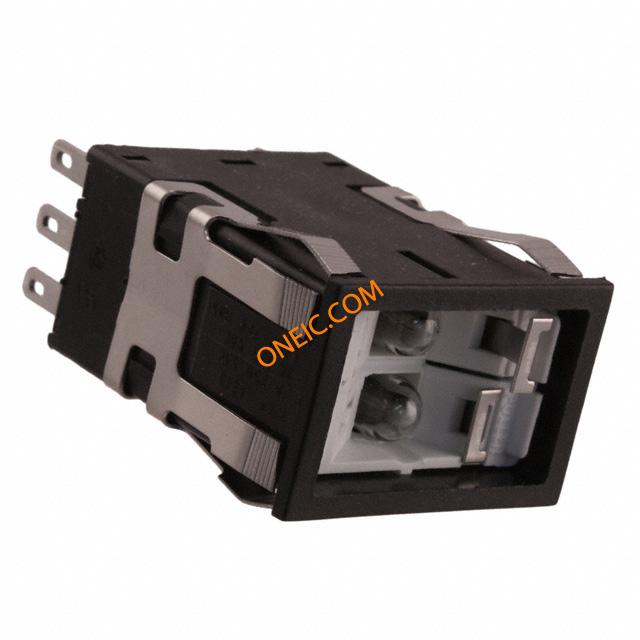

AML21GBE2AC
| 制造商 | |
| 描述 | Pushbutton Switches DPDT Momentary Lighted 2 Lamps MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH PUSHBUTTON DPDT 3A 125V Switch Push Button DPDT Rectangular Button Momentary Contact Quick Connect/Solder Panel Mount Switch Push Button DPDT Rectangular Button Momentary Contact Quick Connect/Solder Panel Mount Product Highlights:1, 2, or 4 poles.Silver or gold contacts.Full guard bezel option.Momentary or 2-level alternate action (push-on, push-off).UL recognized, CSA certified.Lamps can be furnished installed or ordered separately.Lamp circuit independent of switch circuit. UnsealedOperatorControls AML21 Series, Electronic Control Pushbutton, Rectangular, Standard Bezel, Lighted, 2 Incandescent Lamp, DPDT, Momentary Action, Snap in panel mount |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Pushbutton Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电路 | DPDT | 灯类型 | Lighted, 2 Incandescent Lamp |
| 额定电压 | 125 V | 开关功能 | Momentary |
| 供电电压 | 0.4-3 A @ 0.5-125 Vac|0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac | LED正向电压 | 28 V Lamp |
| 最大额定电流 | 3 A | 标称照明电压 | 28 VAC |
| 最大持续工作电压（MCOV） | 0.4-3 A @ 0.5-125 Vac|0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac | ||
机械参数
| 包装方式 | Bulk | 端接方式 | .110 x .020 (Solder or Quick-Connect) |
| 触点形式 | DPDT | 致动器类型 | Rectangular |
| 安装类型 | Snap-in Panel | 安装样式 | Snap In |
| 封装形式 | Rectangular | 端接样式 | Solder |
| 照明颜色 | Multiple | 面板开孔尺寸（外形） | Rectangular - 28.98mm x 19.05mm |
| 照明类型及颜色 | Incandescent | ||
产品信息
| 备注 | use AML51 button | 类型 | Standard, Illuminated |
| 系列 | AML21 | 功能 | Momentary Action |
| 电路结构 | DPDT | UNSPSC代码 | 30211913 |
| 照明类型 | Illuminated | 产品子类型 | MICRO SWITCH⢠Pushbutton |
| 电气寿命 | 100,000 Cycles | UNSPSC商品 | 30211913 Push button switches |
环境参数
| 机械寿命 | 100,000 Cycles | ||
