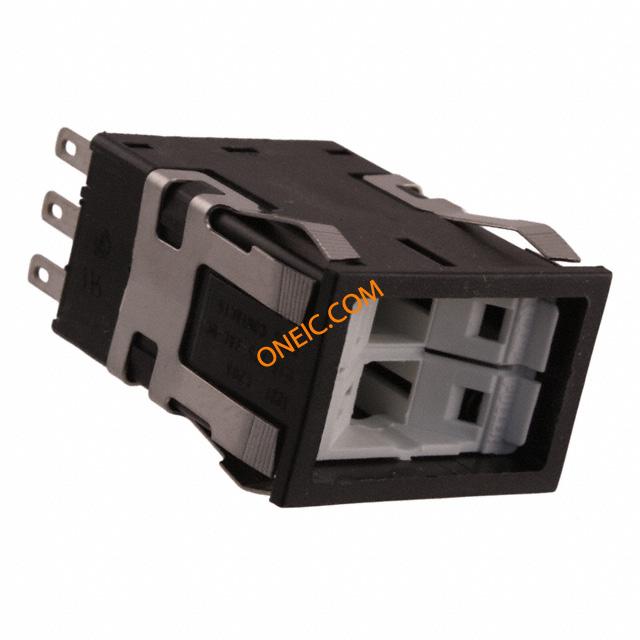

AML21EBA2BA
| 制造商 | |
| 描述 | Pushbutton Switches SPDT Momentary Unlighted Switch Push Button SPDT Rectangular Button Momentary Contact Quick Connect/Solder Panel Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH PUSHBUTTON SPDT 0.1A 125V Switch Push Button SPDT Rectangular Button Momentary Contact Quick Connect/Solder Panel Mount Product Highlights:1, 2, or 4 poles.Silver or gold contacts.Full guard bezel option.Momentary or 2-level alternate action (push-on, push-off).UL recognized, CSA certified.Lamps can be furnished installed or ordered separately.Lamp circuit independent of switch circuit. UnsealedOperatorControls AML21 Series, Electronic Control Pushbutton, Rectangular, Standard Bezel, Unlighted, SPDT, Momentary Action, Snap in panel mount |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 子类别 | Switch Push Button |
| 产品类别 | Pushbutton Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电路 | SPDT | 灯类型 | Unlighted |
| 额定电压 | 125 V | 开关功能 | Momentary |
| 供电电压 | 0.01-0.1 A @ 0.5-24 Vdc | LED正向电压 | No Lamp Installed |
| 最大额定电流 | 3 A | 最大持续工作电压（MCOV） | 0.01-0.1 A @ 0.5-24 Vdc |
机械参数
| 包装方式 | Bulk | 端接方式 | .110 x .020 (Solder or Quick-Connect) |
| 触点形式 | SPDT | 致动器类型 | Rectangular |
| 安装类型 | Panel Mount | 端子类型 | Quick Connect|Solder |
| 安装样式 | Snap In | 封装形式 | Rectangular |
| 触头材料 | Gold | 端接样式 | Solder |
| 按钮样式/尺寸 | Rectangular Button | 开关驱动电平 | SPDT |
| 面板开孔尺寸（外形） | Rectangular - 28.98mm x 19.05mm | ||
产品信息
| 备注 | use AML51 button | 类型 | Standard |
| 系列 | AML21 | 功能 | Momentary Contact |
| 电路结构 | SPDT | UNSPSC代码 | 30211913 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Pushbutton |
| 电气寿命 | 100,000 Cycles | UNSPSC商品 | 30211913 Push button switches |
环境参数
| 机械寿命 | 100,000 Cycles | ||
