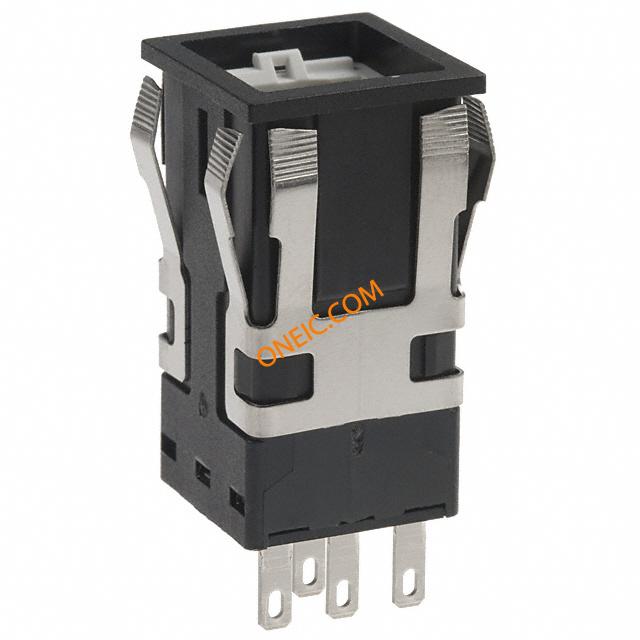

AML21CBA2AA
| 制造商 | |
| 描述 | Pushbutton Switches Momentary Snap in SPDT 1 Lamp Square Switch Push Button SPDT Square Button Momentary Contact Quick Connect/Solder Panel Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Pushbuttons and Manual Switches SWITCH PUSHBUTTON SPDT 3A 125V Switch; Pushbutton; SQUARE DISPLAY Lighted; LAMP CIRCUIT; SPDT; MOM. Switch Push Button SPDT Square Button Momentary Contact Quick Connect/Solder Panel Mount Product Highlights:1, 2, or 4 poles.Silver or gold contacts.Full guard bezel option.Momentary or 2-level alternate action (push-on, push-off).UL recognized, CSA certified.Lamps can be furnished installed or ordered separately.Lamp circuit independent of switch circuit. Switch,Pushbutton,SQUAREDISPLAYLighted,LAMPCIRCUIT,SPDT,MOM. AML21 Series, Electronic Control Pushbutton, Square, Standard Bezel, Lighted, 1 Incandescent Lamp, SPDT, Momentary Action, Snap in panel mount |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Standard Switches | 交货时间 | 38 Days |
| 其他名称 | 480-2220 | 子类别 | Switch Push Button |
| 产品类别 | Pushbutton Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized,CSACertified | ||
电气参数
| 电路 | SPDT | 灯类型 | Lighted, 1 Incandescent Lamp |
| 操作方式 | Momentary | 额定电压 | 125 V |
| 极数 | 1 | 开关功能 | Momentary |
| 供电电压 | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac | LED正向电压 | No Lamp Installed |
| 最大额定电流 | 3 A | 最大持续工作电压（MCOV） | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac |
机械参数
| 颜色 | Black | 形状 | Square |
| 包装方式 | Bulk | 端接方式 | .110 x .020 (Solder or Quick-Connect) |
| 触点形式 | SPDT | 致动器类型 | Square |
| 安装类型 | Panel Mount | 端子类型 | Quick Connect|Solder |
| 接触镀层 | Silver | 安装样式 | Snap In |
| 封装形式 | Square | 触头材料 | Silver |
| 端接样式 | Solder | 照明颜色 | Multiple |
| 按钮样式/尺寸 | Square Button | 位数 | 2 |
| 安装孔直径 | 18.92mm | 开关驱动电平 | SPDT |
| 面板开孔尺寸（外形） | Square - 19.05mm² | 照明类型及颜色 | Incandescent |
产品信息
| 备注 | use AML51 button | 类型 | Standard, Illuminated |
| 系列 | AML21 | 功能 | Momentary Contact |
| 电路结构 | SPDT | UNSPSC代码 | 30211913 |
| 照明类型 | Illuminated | 产品子类型 | MICRO SWITCH⢠Pushbutton |
| 电气寿命 | 100,000 Cycles | UNSPSC商品 | 30211913 Push button switches |
环境参数
| 机械寿命 | 100,000 Cycles | ||
