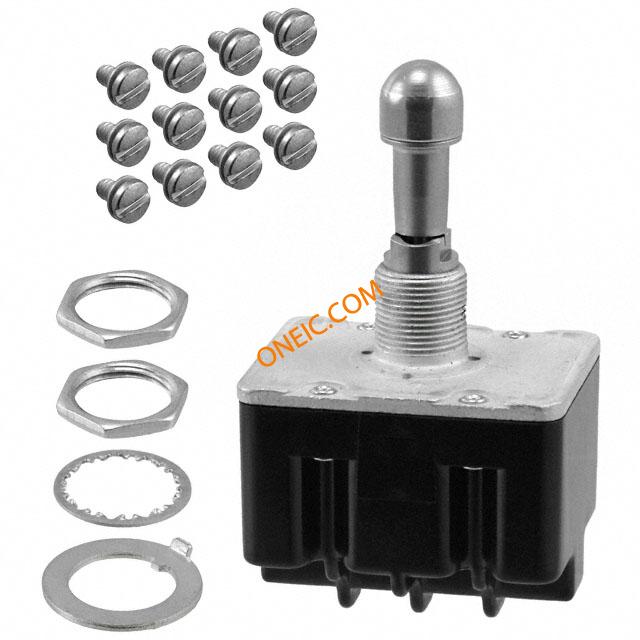

4TL1-7E
| 制造商 | |
| 描述 | Toggle Switches Sealed OI/TL TOGGLES Switch Toggle (ON) OFF (ON) 4PDT Locking Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE 4PDT 10A 125V Switch Toggle (ON) OFF (ON) 4PDT Locking Lever Screw 18A 277VAC 250VDC 745.7VA Panel Mount with Threads Switch Toggle (ON) OFF (ON) 4PDT Locking Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads Product Highlights:Qualified to MIL-S-3950Environment-proof sealing1,2, and 4 pole circuitryStandard and pull-to-unlock levers2 and 3 position, maintained and momentary toggle actionTemperature range: -85�F to +160�F Completely sealed switching chamberStep-design case provides added space between terminals to help prevent shortingUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SealedOperatorControls TL Series Toggle Switch, 4 pole, 3 position, Screw terminal, Locking Lever, Military Part Number MS24660-27E |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | MS24660-27E | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准编号 | Locking | 认证机构标志 | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " |
电气参数
| 电路 | 4PDT | 操作方式 | 130106 |
| 额定功率 | 372.85 | 额定电压 | 277 V |
| 开关功能 | (ON) - OFF - (ON) | 供电电压 | 0.75 A at 115 Vdc|0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac |
| 最大额定电流 | 20 A | 最小输入电压 | 277@(CSA/UL) |
| 开关功能/额定值 | (ON) OFF (ON) | 最大持续工作电压（MCOV） | 0.75 A at 115 Vdc|0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 1 |
机械参数
| 深度 | 41.6 | 包装方式 | Bulk |
| 端接方式 | Screw | 触点形式 | 4PDT |
| 致动器类型 | Lever | 安装类型 | Panel Mount with Threads |
| 端子类型 | Screw | 衬套螺纹 | 15/32-32 |
| 接触镀层 | Silver Cadmium Oxide | 安装样式 | Wire |
| 执行器长度 | 26.67mm | 锁定特性 | 130107 |
| 触头材料 | Silver Cadmium Oxide | 总长度 | 33.5 |
| 执行器材料 | Nickel Plated | 端接样式 | Screw |
| 按钮样式/尺寸 | Locking Lever | 衬套/护套类型 | 15/32-32 |
| 开关驱动电平 | 4PDT | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | Silver cadmium oxide contacts | 系列 | TL |
| 功能 | 3 position | 电路结构 | 4PDT |
| UNSPSC代码 | 30211908 | 照明类型 | Non-Illuminated |
| 产品子类型 | MICRO SWITCH⢠Toggle Switch | UNSPSC商品 | 30211908 Toggle switches |
| 设备部件号 | MS24660-27E | ||
环境参数
| 密封等级 | Sealed | 防护等级 | Environment Proof |
| 工作温度 | -65°C ~ 71°C | ||
