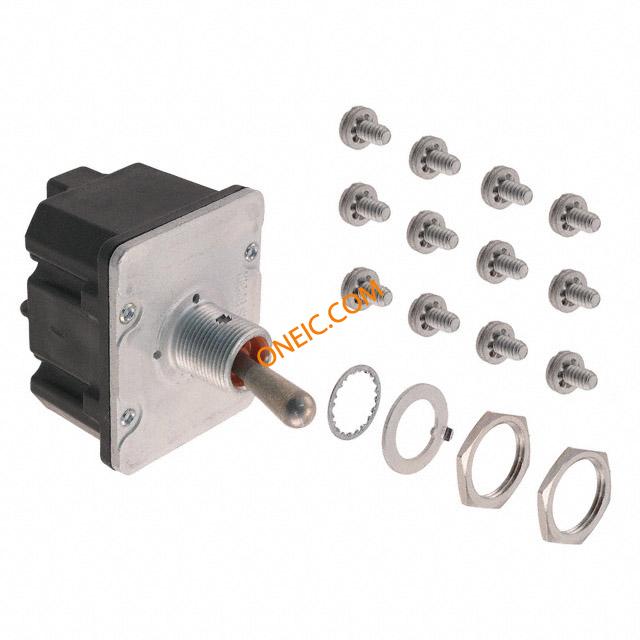

4NT1-8
| 制造商 | |
| 描述 | Toggle Switches 4 Pole 2 Positions Standard Lever Switch Toggle (ON) ON 4PDT Round Lever Screw 18A 277VAC 250VDC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE 4PDT 10A 125V Switch; Toggle; 4 Pole; 2 Position; Screw Terminals; Standard Lever Switch Toggle (ON) ON 4PDT Round Lever Screw 18A 277VAC 250VDC Panel Mount with Threads Product Highlights:Completely sealed switching chamberNEMA 3, 3R, 4, and 13UL recognized, File E12252, Vol. 1, Section 44CSA certified, File LR4442CE approvedPotential Applications:Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranesConstruction equipmentAgriculture equipmentMaterial-handling equipmentFactory-floor control unitsMachine tool equipment manufacturers Switch,Toggle,4Pole,2Position,ScrewTerminals,StandardLever NT Series Toggle Switch, 4 pole, 2 position, Screw terminal, Standard Lever |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Switch Toggle |
| 产品类别 | Toggle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " | ||
电气参数
| 电路 | 4PDT | 操作方式 | 129655 |
| 额定电压 | 125V | 极数 | 4 |
| 开关功能 | ON - ON | 供电电压 | 0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc|0.75 A at 115 Vdc |
| 最大额定电流 | 10A (AC) | 最小输入电压 | 277@(CSA/UL) |
| 开关功能/额定值 | (ON) ON | 最大持续工作电压（MCOV） | 0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A at |
机械参数
| 深度 | 41.6 | 高度 | 63.6 |
| 包装方式 | Bulk | 端接方式 | Screw |
| 触点形式 | 4PDT | 致动器类型 | Lever |
| 安装类型 | Panel Mount with Threads | 端子类型 | Screw |
| 衬套螺纹 | 15/32-32 | 安装样式 | Panel |
| 执行器长度 | 17.27mm | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 33.4 | 端接样式 | Screw |
| 按钮样式/尺寸 | Round Lever | 位数 | 2 |
| 衬套/护套类型 | 15/32-32 | 开关驱动电平 | 4PDT |
| 面板开孔尺寸（外形） | Circular - 12.40mm Dia | ||
产品信息
| 备注 | Switches are capable of withstanding a temperature of 160 degrees F continuously | 类型 | Toggle |
| 系列 | NT | 产品特性 | Sealed |
| 功能 | 2 position | 电路结构 | 4PDT |
| UNSPSC代码 | 30211908 | 照明类型 | Non-Illuminated |
| 产品子类型 | MICRO SWITCH⢠Toggle Switch | UNSPSC商品 | 30211908 Toggle switches |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 71°C |
