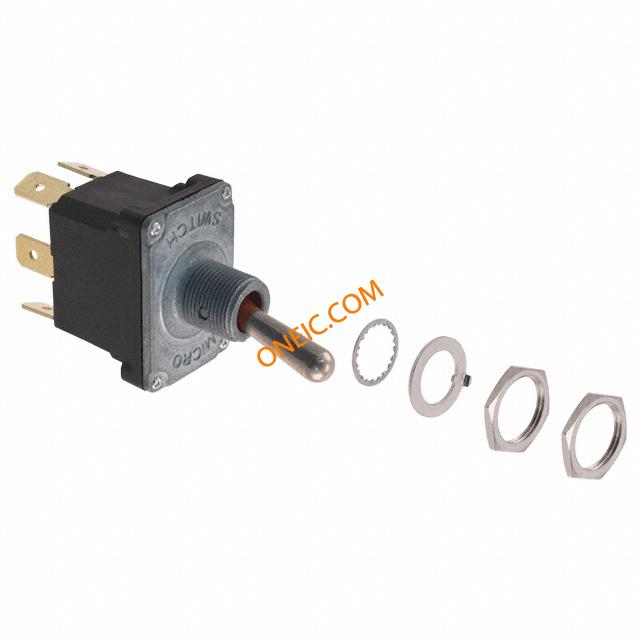

32NT91-3
| 制造商 | |
| 描述 | Toggle Switches 2 Pole 2 Position Standard Lever QC Switch Toggle ON ON DPDT Round Toggle Quick Conn 20A 277VAC 250VDC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE DPDT 15A 125V Switch Toggle ON ON DPDT Round Toggle Quick Conn 20A 277VAC 250VDC Panel Mount with Threads Product Highlights:Completely sealed switching chamberNEMA 3, 3R, 4, and 13UL recognized, File E12252, Vol. 1, Section 44CSA certified, File LR4442CE approvedPotential Applications:Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranesConstruction equipmentAgriculture equipmentMaterial-handling equipmentFactory-floor control unitsMachine tool equipment manufacturers SealedOperatorControls NT Series Toggle Switch, 2 pole, 2 position, Quick Connect terminal, Standard Lever |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Micro Switch | 产品类别 | Toggle Switches |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" | ||
电气参数
| 电路 | DPDT | 操作方式 | 129492 |
| 额定电压 | 277 V | 开关功能 | ON - OFF - ON |
| 供电电压 | 0.5 A to 15 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.75 A at 115 Vdc | 最大额定电流 | 15 A at VAC, 20 A at VDC |
| 最小输入电压 | 277@(CSA/UL) | 开关功能/额定值 | ON ON |
| 最大持续工作电压（MCOV） | 0.5 A to 15 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc|0.5 A to 20 A at 0.5 Vdc to | ||
机械参数
| 深度 | 22.6 | 高度 | 63.6 |
| 包装方式 | Bulk | 端接方式 | Quick Connect |
| 触点形式 | DPDT | 致动器类型 | Lever |
| 安装类型 | Panel Mount with Threads | 端子类型 | Quick Connect |
| 衬套螺纹 | 15/32-32 | 安装样式 | Panel |
| 执行器长度 | 17.02mm | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 55.1 | 端接样式 | Quick Connect |
| 按钮样式/尺寸 | Round Toggle | 衬套/护套类型 | 15/32-32 |
| 安装孔直径 | 12.4 mm | 开关驱动电平 | DPDT |
| 面板开孔尺寸（外形） | Circular - 12.40mm Dia | ||
产品信息
| 备注 | Switches are capable of withstanding a temperature of 160 degrees F continuously | 系列 | NT |
| 产品特性 | Sealed | 功能 | 2 position |
| 电路结构 | DPDT | UNSPSC代码 | 30211908 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Toggle Switch |
| UNSPSC商品 | 30211908 Toggle switches | ||
环境参数
| 密封等级 | Sealed | 防护等级 | IP67/68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 71°C | ||
