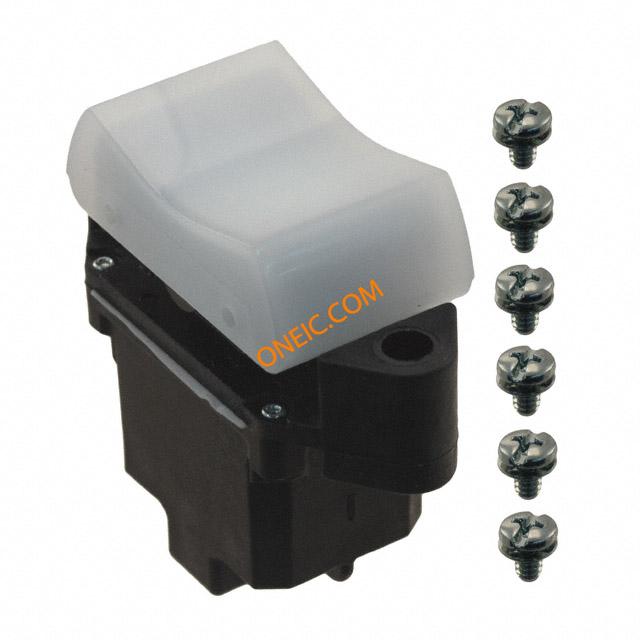

2TP201-7
| 制造商 | |
| 描述 | Rocker Switches & Paddle Switches DPDT (ON)-OFF-(ON) Screw Term Switch Rocker (ON) OFF (ON) DPDT Screw Rocker 18A 277VAC 250VDC 372.85VA MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Rocker Switches SWITCH ROCKER DPDT 10A 125V SWITCH; TOGGLE; 2 POLE; 3 POSITION; SCREW TERMINAL; FLUSH PANEL MOUNTING Rocker Switches DPDT (ON)-OFF-(ON) Screw Term Switch Rocker ON OFF ON DPDT Screw Rocker 10A 277VAC 372.85VA Switch Rocker ON OFF ON DPDT Screw Rocker 10A 277VAC 372.85VA Product Highlights:Environmentally sealedTwo and three-position pushbutton actionVarious button colors1, 2, and 4-pole circuitryFlush panel and above panel mountingsTemperature range: -54 �C to +71 �C [-65 �F to +160 �F]UL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationMarine applicationsConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SWITCH,TOGGLE,2POLE,3POSITION,SCREWTERMINAL,FLUSHPANELMOUNTING TP Series Rocker Switch, 2 pole, 3 position, Screw terminal, Flush Panel Mounting |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 42 Days | 子类别 | Switch Rocker |
| 产品类别 | Rocker Switches & Paddle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " | ||
电气参数
| 电路 | DPDT | 灯类型 | Translucent |
| 操作方式 | 129043 | 额定功率 | 372.85@(CSA/UL) |
| 额定电压 | 277 V | 开关功能 | (ON) - OFF - (ON) |
| 供电电压 | 0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac | 最大额定电流 | 10 A |
| 最小输入电压 | 277@(CSA/UL) | 开关功能/额定值 | (ON) OFF (ON) |
| 触点额定值 @ 电压 | 10 A at 125 V | 最大持续工作电压（MCOV） | 0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to |
机械参数
| 颜色 | Black | 深度 | 22.6 |
| 包装方式 | Bulk | 端接方式 | Screw |
| 触点形式 | DPDT | 致动器类型 | Rocker |
| 安装类型 | Panel Mount | 端子类型 | Screw |
| 接触镀层 | Silver | 安装样式 | Panel |
| 触头材料 | Silver Cadmium Oxide | 总长度 | 55.1 |
| 执行器材料 | Plastic | 端接样式 | Screw |
| 按钮样式/尺寸 | Rocker | 按钮/帽颜色 | White |
| 开关驱动电平 | DPDT | 面板开孔尺寸（外形） | Rectangular - 38.40mm x 23.90mm |
产品信息
| 备注 | FAA-PMA approved, white button | 系列 | TP |
| 产品特性 | Sealed | 功能 | 3 position |
| 电路结构 | DPDT | UNSPSC代码 | 302119 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Rocker |
| 执行器标记 | No Marking | UNSPSC商品 | 302119 Switches and controls and relays |
环境参数
| 密封等级 | Unsealed | 工作温度 | -54°C ~ 71°C |
