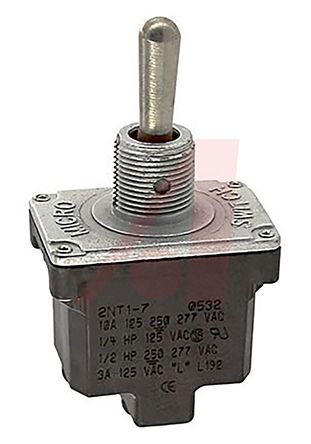

2NT1-7
| 制造商 | |
| 描述 | Toggle Switches DPDT (ON)-OFF-(ON) Screw Term Switch Toggle (ON) OFF (ON) DPDT Round Lever Screw 18A 277VAC 250VDC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE DPDT 10A 125V Switch; Toggle; 2 POLE; 3 Position; SCREW TerminalS; (ON)-OFF-(ON) Switch Toggle (ON) OFF (ON) DPDT Round Lever Screw 18A 277VAC 250VDC Panel Mount with Threads Product Highlights:Completely sealed switching chamberNEMA 3, 3R, 4, and 13UL recognized, File E12252, Vol. 1, Section 44CSA certified, File LR4442CE approvedPotential Applications:Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranesConstruction equipmentAgriculture equipmentMaterial-handling equipmentFactory-floor control unitsMachine tool equipment manufacturers Switch,Toggle,2POLE,3Position,SCREWTerminalS,(ON)-OFF-(ON) NT Series Toggle Switch, 2 pole, 3 position, Screw terminal, Standard Lever Honeywell 双刀双掷 切换开关 , (On)-Off-(On), 18 A @ 28 V 直流 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Toggle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " | ||
电气参数
| 电路 | DPDT | 操作方式 | 127396 |
| 额定电压 | 125V | 极数 | 2 |
| 开关功能 | (ON) - OFF - (ON) | 供电电压 | 0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A to 18 A at 0.5 Vdc to 28 Vdc |
| 额定交流电压 | 125V | 最大额定电流 | 10A (AC) |
| 最小输入电压 | 277@(CSA/UL) | 开关功能/额定值 | (ON) OFF (ON) |
| 最大持续工作电压（MCOV） | 0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A to | ||
机械参数
| 深度 | 22.6 | 高度 | 63.6 |
| 包装方式 | Bulk | 发光颜色 | Non-Illuminated |
| 端接方式 | Screw | 触点形式 | DPDT |
| 外壳表面处理 | SwitchingChamber | 致动器类型 | Lever |
| 电缆开口 | Circular - 12.40mm Dia | 安装类型 | Panel Mount with Threads |
| 端子类型 | Screw | 衬套螺纹 | 15/32-32 |
| 连接器类型 | 螺丝 | 安装样式 | Panel |
| 执行器长度 | 17.02mm | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 33.4 | 端接样式 | Screw |
| 按钮样式/尺寸 | Round Lever | 位数 | 3 |
| 衬套/护套类型 | 15/32-32 | 开关驱动电平 | DPDT |
| 典型触点布局 | 双刀双掷 | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | Thermoplastic case | 类型 | Toggle |
| 系列 | NT | 产品特性 | Sealed |
| 功能 | 3 position | 电路结构 | DPDT |
| UNSPSC代码 | 30211908 | 电路类型 | DPDT |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Toggle Switch |
| UNSPSC商品 | 30211908 Toggle switches | 输出配置 | Panel Mount |
| 应用细节 | Aeriallifts,scissorlifts,truckmountedtele-handlers,andcranes,constructionequipment,agricultureequipment,material-handlingequipment,factory-floorcontrolunits,machinetoolequipmentmanufacturers | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 71°C |
