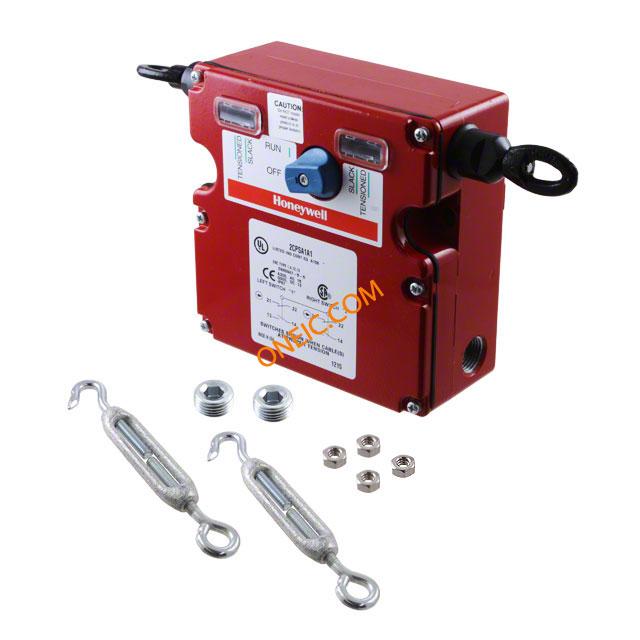

2CPSA1A1
| 制造商 | Honeywell International Inc. |
| 描述 | Control Switches 2NC/2NO 1/2 NPT MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Safety Switches, Cable Pull SWITCH CABLE 4PST UL CSA 250V Switch; Cabe Pull; Safety; Maintained Both Sides; Gold Plated Contacts Product Highlights:Positive opening operation of normally closed contactsChoice of 2NC/2NO or 3NC/1NO contact configurationsMaximum cable length in a single direction is 76 m (250 ft) for a combined length of 152 m (500 ft) in dual directionsChoice of three actuator configurationsRemovable contact block version availableLarge wiring cavity with straight-through wiring 24 Vdc or 120 Vac bright, multi-cluster LED status indicator light availableGold-plated contacts are standardDie-cast zinc housingOptional hardware packs available Switch;CabePull;Safety;MaintainedBothSides;GoldPlatedContacts Safety switch: doublesided grabwire switch; Outputs:4; -25÷80°C sale 2CPS Series, Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC/2NO Direct Opening (Switch 2, Left: 1NC/1NO; Switch 2, Right: 1NC/1NO), 1/2 NPT, Gold-plated Contacts |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 1 | 产品类别 | Control Switches |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | BG,UL,CSA,CEApproved |
| UL档案号 | E37138, E157416 | 认证机构 | UL, CSA, CE |
| CSA档案号 | LR57326 | 安全输出与类型 | doublesided grabwire switch |
| 机构认证与标准 | EN60947-1, EN-60947-5-1, EN60947-5-5 | ||
电气参数
| 电路 | 4PST (2-NO, 2-NC) | 电压 | 250 Vac and 60 Vdc Maximum |
| 指示器 | None | 操作方式 | Latchedwhentrippedfromeitherdirection |
| 额定电压 | 250V | 输出数量 | 4 |
| 差动行程 | * | 最大额定电流 | 10 uA to 50 mA Low Energy |
| 触点额定值 @ 电压 | 10 uA to 50 mA | ||
机械参数
| 重量 | 3.73 kg | 包装方式 | * |
| 预行程 | * | 超行程 | * |
| 接触端类型 | Mounted to Housing | 端接方式 | 1/2 NPT |
| 触点形式 | 2 NC / 2 NO | 致动器类型 | Cable |
| 安装类型 | Chassis Mount | 释放力 | * |
| 安装样式 | Screw | 外壳材料（壳体） | ZincDie-Cast |
| 操作力 | 15 G | 触头材料 | Gold-plated |
| 壳体材料 | Zinc Die-Cast | 总长度 | 2x 76m |
| 端接样式 | Screw Terminal | ||
产品信息
| 备注 | Low Voltage Directive 73/23/EEC, as amended by directive 93/68/EEC. Machinery Directive 98/37/EEC only as the directives relate to the components being used in a safety function. EN60947-1, EN-60947-5-1, EN60947-5-5 | 类型 | CablePull |
| 系列 | 2CPS | 产品特性 | * |
| 开关类型 | 2NC/2NO Direct Opening (Switch 1, Left: 1NC/1NO; Switch 2, Right: 1NC/1NO) | UNSPSC代码 | 302119 |
| 应用 | see | 照明类型 | N |
| 产品子类型 | Cable Pull Safety Switch | 控制方式 | Cable Pull Safety Switch |
| 电气寿命 | * | 单元数量 | 1 |
| UNSPSC商品 | 302119 Switches and controls and relays | 工作高度 | * |
| 应用细节 | Longconveyorsystemsfoundinwarehousesanddistributioncenters,Conveyorsystemshavingahighamountofvibration,Conveyorsystemsthatexperiencewidetemperatureswings | 触点配置 | NC x2 + NO x2 |
环境参数
| 振动 | 10 Hz - 500 Hz, 5 G | 机械寿命 | 1 Million |
| 防护等级 | IP67, NEMA/UL 1, 4, 12, 13 | 工作温度 | -40 °C to 85 °C [-40 °F to 185 °F] |
