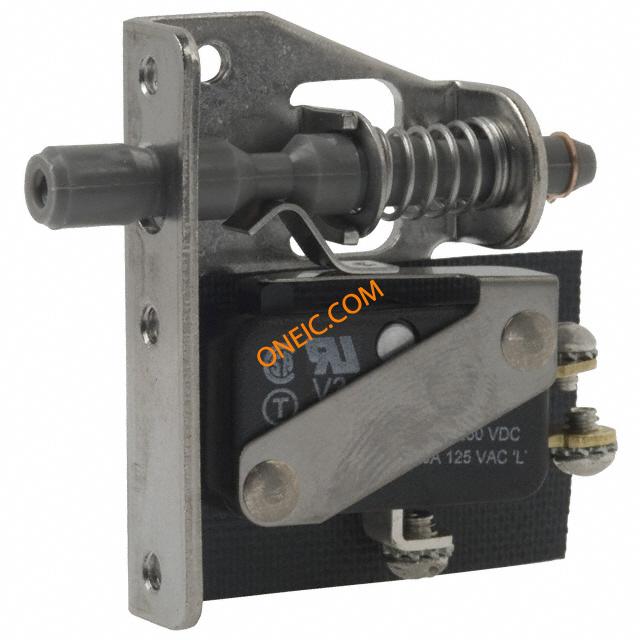

23AC2
| 制造商 | |
| 描述 | Basic / Snap Action Switches 15 A @ 250 VAC Rod Actuator BASIC SWITCHES DOOR MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Basic Switches, MICRO SWITCH™ Special Application Precision Switches SW ROD ACT SPDT 15A SCRW 125V Switch; DOOR; INTERLOCK; SPDT; ROD Actuator; 15 AMPS; SCREW TERMINATION Electromechanical Switch Door Switch SPDT 15A Electromechanical Switch Door Switch SPDT 15A Product Highlights:Automatically cuts power when service door or drawer is openedChoice of momentary, maintained or pull-to-cheat actuationVersatile mounting bracket for side or end mountingCurrent rating ranges from 5 A to 25 AAvailable with one or two SPDT switchesUL recognized versions availableChoice of terminationPotential Applications:AppliancesVending machinesOffice equipmentComputer/business equipmentTest instrumentsMedical/dental equipmentCommunications equipmentHVAC equipment Switch,DOOR,INTERLOCK,SPDT,RODActuator,15AMPS,SCREWTERMINATION AC Series Door Switch, Single Pole Double Throw Circuitry, 15 A at 250 Vac, Rod Actuator, Silver Contacts, Screw Termination |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 商标名 | Microswitch |
| 其他名称 | 480-2487 | 子类别 | Switch Safety Interlock |
| 产品类别 | Basic / Snap Action Switches | 标准包装数量 | 5 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized | ||
电气参数
| 电路 | SPDT | 电压 | 250 Vac |
| 操作方式 | Maintained | 额定电压 | 250 V |
| 极数 | 1 | 开关功能 | On-Mom |
| 最大额定电流 | 15 A | ||
机械参数
| 宽度 | 12,7 mm [0.50 in] | 密封型 | No |
| 重量 | 41,73 g [.092 lb] | 包装方式 | Bulk |
| 超行程 | 0.125" (3.2mm) | 端接方式 | Screws |
| 触点形式 | SPDT | 触头类型 | Silver |
| 致动器类型 | Rod | 安装类型 | Chassis Mount |
| 安装样式 | Door | 操作力 | 1814gf |
| 壳体材料 | Stainless Steel Bracket, Polyester Rod | 总长度 | 50,0 mm [1.97 in] |
| 端接样式 | Screw | 位数 | 2 |
| 外壳尺寸-插件 | 46 mm [1.81 in] | ||
产品信息
| 类型 | Door Switch | 系列 | AC |
| 电路结构 | SPDT | 开关类型 | Door 38,1 mm H x 12,7 mm W x 38,1 mm L [1.5 in H x 0.5 in W x 1.5 in L] |
| UNSPSC代码 | 39122209 | UNSPSC商品 | 39122209 Snap switches |
| 工作高度 | 0.203" (5.2mm) | ||
环境参数
| 温度额定值 | -18to+82°C | 工作温度 | -18°C ~ 82°C |
