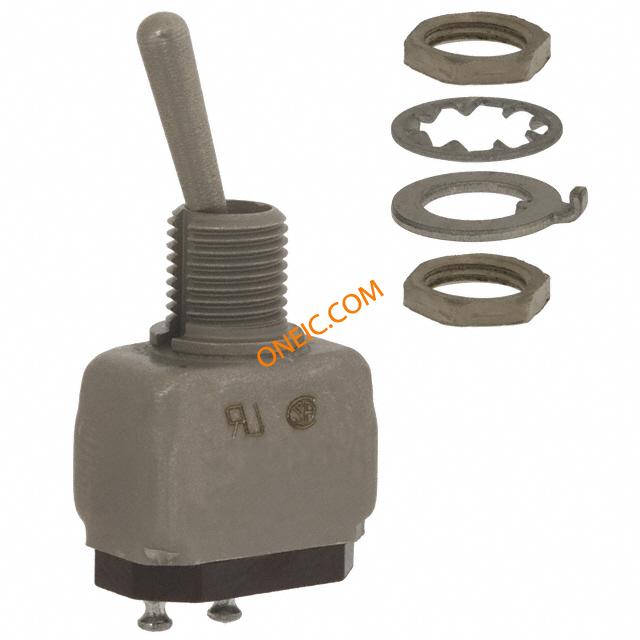

点击放大查看
1TW1-7
| 制造商 | |
| 描述 | Toggle Switches Toggle SW 1POLE 3POS SOLDER TERM STD LVR Switch Toggle (ON) OFF (ON) SPDT Round Toggle Solder 5A 125VAC 30VDC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE SPDT 15A 125V Switch Toggle (ON) OFF (ON) SPDT Round Toggle Solder 5A 125VAC 30VDC Panel Mount with Threads Product Highlights:Qualified to MIL-S-83731Save space and weightSPDT and DPDT circuitryTemperature range: -85�F to +160�F (-65�C to +71�C)Sealed bushing versionsChoice of � in. or 15/32 in. bushingColor tab available on 15/32 in. bushingUL recognizedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch,Toggle,1Pole,3POS,SolderTerminals,StdLever TW Series Toggle Switch, 1 pole, 3 position, Solder terminal, Standard Lever, Military Part Number MS27716-27-1 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 84 Days | 子类别 | Switch Toggle |
| 零件号别名 | MS27716-27-1 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准编号 | Standard | 认证机构标志 | L117: 5 A at 125 Vac |
电气参数
| 电路 | SPDT | 操作方式 | 126789 |
| 额定电压 | 125 V | 开关功能 | Mom-Off-Mom |
| 供电电压 | 0.1 A to 5.0 A at 0.5 Vac to 115 Vac|0.1 A to 5.0 A at 0.5 Vdc to 28 Vdc | 最大额定电流 | 10 A |
| 最小输入电压 | 125@(CSA/UL) | 开关功能/额定值 | (ON) OFF (ON) |
| 最大持续工作电压（MCOV） | 0.1 A to 5.0 A at 0.5 Vac to 115 Vac|0.1 A to 5.0 A at 0.5 Vdc to 28 Vdc | ||
机械参数
| 深度 | 8.9 | 高度 | 33.4 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触点形式 | SPDT | 致动器类型 | Lever |
| 安装类型 | Panel Mount with Threads | 端子类型 | Solder |
| 衬套螺纹 | 1/4-40 | 接触镀层 | Silver |
| 安装样式 | Panel | 执行器长度 | 10.67mm |
| 触头材料 | Fine Silver | 总长度 | 14.5 |
| 端接样式 | Solder | 按钮样式/尺寸 | Round Toggle |
| 衬套/护套类型 | 1/4-40 | 开关驱动电平 | SPDT |
| 面板开孔尺寸（外形） | Circular - 6.60mm Dia | ||
产品信息
| 备注 | Fine silver contacts | 类型 | Miniature |
| 系列 | TW | 功能 | 3 position |
| 电路结构 | SPDT | UNSPSC代码 | 30211908 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Toggle Switch |
| 行业别名 | 5930012828691, MS27716-27-1 | UNSPSC商品 | 30211908 Toggle switches |
| 设备部件号 | MS27716-27-1 | ||
环境参数
| 密封等级 | Sealed | 防护等级 | Environment Proof |
| 工作温度 | -65°C ~ 71°C | ||
