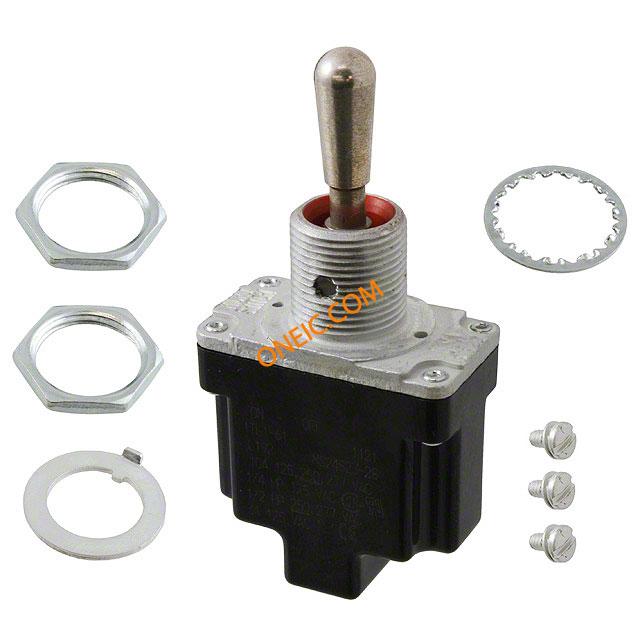

1TL1-61

制造商	Honeywell International Inc.
描述	Toggle Switches Toggle SW 1POLE 3POS SCRW TERM STD LVR MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE SPST-NO 10A 125V Switch Toggle (ON) OFF None SPST Round Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads Switch Toggle (ON) OFF None SPST Round Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads Product Highlights:Qualified to MIL-S-3950Environment-proof sealing1,2, and 4 pole circuitryStandard and pull-to-unlock levers2 and 3 position, maintained and momentary toggle actionTemperature range: -85�F to +160�F Completely sealed switching chamberStep-design case provides added space between terminals to help prevent shortingUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch,Toggle;TLSeries;SP3T;Screws;MilitaryPartMS24523-28 TL Series Toggle Switch, 1 pole, 3 position, Screw terminal, Standard Lever, Military Part Number MS24523-28
分类	开关拨动开关拨动开关

对参数有疑问？问 AI 助手

商业参数

零件号别名

MS24523-28

标准包装数量

RoHS	RoHS Compliant	标准编号	Standard
认证机构标志	L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac "

电路	SPST-NO	操作方式	126309
额定电压	277 V	开关功能	(ON) - OFF - NONE
供电电压	0.5 A at 250 Vdc\|0.75 A at 115 Vdc\|0.5 A to 15 A at 0.5 Vdc to 28 Vdc\|0.5 A to 10 A at 0.5 Vac to 7 Vac	最大额定电流	20 A
最大持续工作电压（MCOV）	0.5 A at 250 Vdc\|0.75 A at 115 Vdc\|0.5 A to 15 A at 0.5 Vdc to 28 Vdc\|0.5 A to 1

备注	Silver cadmium oxide contacts	系列	TL
功能	3 position	电路结构	SPST
UNSPSC代码	30211908	照明类型	Non-Illuminated
产品子类型	MICRO SWITCHâ¢ Toggle Switch	UNSPSC商品	30211908 Toggle switches
设备部件号	MS24523-28

密封等级	Sealed	防护等级	Environment Proof
工作温度	-65°C ~ 71°C
