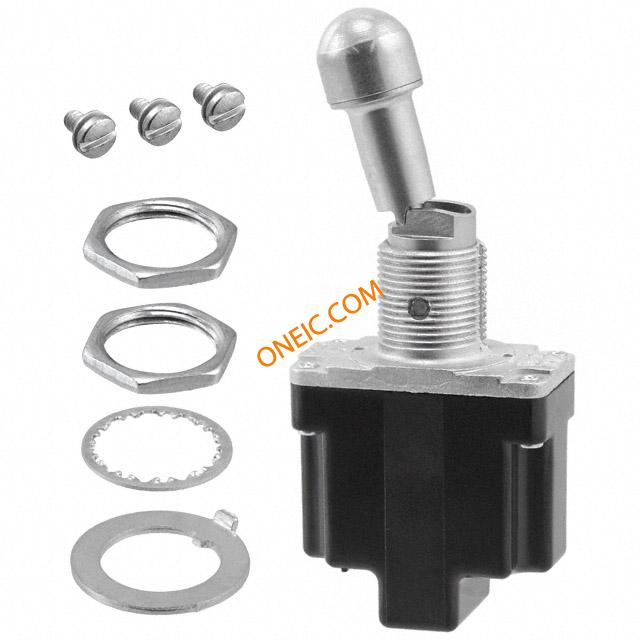

1TL1-3F

制造商	Honeywell International Inc.
描述	Toggle Switches Sealed OI/TL TOGGLES MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE SPDT 15A 125V Switch Toggle ON ON SPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads Switch Toggle ON ON SPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads Product Highlights:Qualified to MIL-S-3950Environment-proof sealing1,2, and 4 pole circuitryStandard and pull-to-unlock levers2 and 3 position, maintained and momentary toggle actionTemperature range: -85�F to +160�F Completely sealed switching chamberStep-design case provides added space between terminals to help prevent shortingUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch,Toggle;TLSeries;SPDT;Screws;LockingLever;Mil.No.MS24658-23F TL Series Toggle Switch, 1 pole, 2 position, Screw terminal, Locking Lever, Military Part Number MS24658-23F
分类	开关拨动开关拨动开关

对参数有疑问？问 AI 助手

商业参数

零件号别名

MS24658-23F

标准包装数量

RoHS	RoHS Compliant	标准编号	Locking
认证机构标志	L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L"

电路	SPDT	操作方式	126202
额定电压	277 V	开关功能	On-On
供电电压	0.75 A at 115 Vdc\|0.5 A to 20 A at 0.5 Vdc to 28 Vdc\|0.5 A at 250 Vdc\|0.5 A to 15 A at 0.5 Vac to 277 Vac	最大额定电流	20 A
最大持续工作电压（MCOV）	0.75 A at 115 Vdc\|0.5 A to 20 A at 0.5 Vdc to 28 Vdc\|0.5 A at 250 Vdc\|0.5 A to 1

备注	Silver cadmium oxide contacts	系列	TL
功能	2 position	电路结构	SPDT
UNSPSC代码	30211908	照明类型	Non-Illuminated
产品子类型	MICRO SWITCHâ¢ Toggle Switch	UNSPSC商品	30211908 Toggle switches
设备部件号	MS24658-23F

密封等级	Sealed	防护等级	Environment Proof
工作温度	-65°C ~ 71°C
