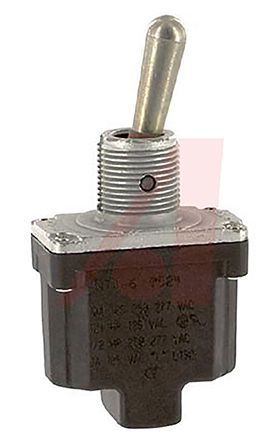

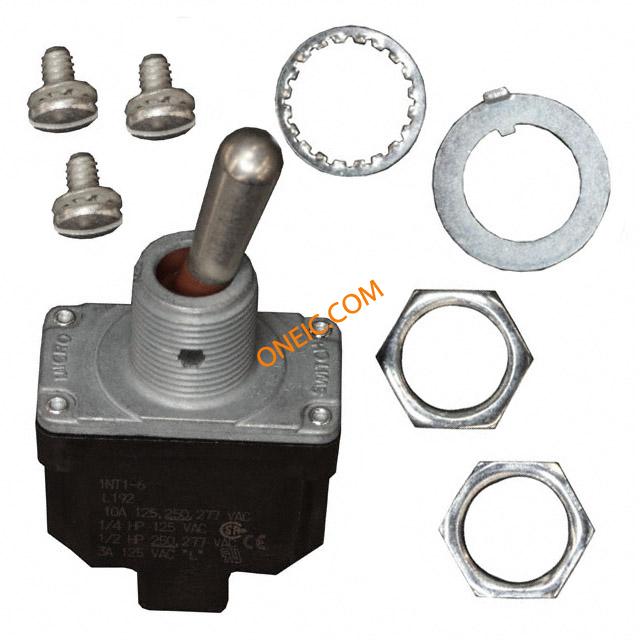

1NT1-6
| 制造商 | |
| 描述 | Toggle Switches SPST (ON)-OFF Screw Term Switch Toggle (ON) OFF SPST Round Lever Screw 15A 277VAC 250VDC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE SPST-NO 10A 125V Switch; Toggle; Sealed; SPST; 10 AMPS; (ON)-OFF Switch Toggle (ON) OFF SPST Round Lever Screw 15A 277VAC 250VDC Panel Mount with Threads Product Highlights:Completely sealed switching chamberNEMA 3, 3R, 4, and 13UL recognized, File E12252, Vol. 1, Section 44CSA certified, File LR4442CE approvedPotential Applications:Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranesConstruction equipmentAgriculture equipmentMaterial-handling equipmentFactory-floor control unitsMachine tool equipment manufacturers Switch,Toggle,Sealed,SPST,10AMPS,(ON)-OFF NT Series Toggle Switch, 1 pole, 2 position, Screw terminal, Standard Lever Honeywell 单刀单掷 切换开关 , (On)-Off, 15 A @ 125 V 交流 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Switch Toggle |
| 产品类别 | Toggle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULListed,CSACertified | 认证机构标志 | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " |
电气参数
| 电路 | SPST-NO | 操作方式 | 125885 |
| 额定电压 | 277 V | 极数 | 1 |
| 开关功能 | (ON) - NONE - OFF | 额定交流电压 | 277V VAC |
| 最大额定电流 | 15 A | 最小输入电压 | 277@(CSA/UL) |
| 开关功能/额定值 | (ON) OFF | 直流击穿电压（标称） | 250V VDC |
| 最大持续工作电压（MCOV） | 0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 15 A at 0.5 Vdc to 28 Vdc|0.5 A to 1 | ||
机械参数
| 深度 | 15.7 mm | 高度 | 58.7 mm |
| 包装方式 | Bulk | 端接方式 | Screw |
| 触点形式 | SPST | 外壳表面处理 | O-Ring |
| 致动器类型 | Lever | 安装类型 | Panel Mount with Threads |

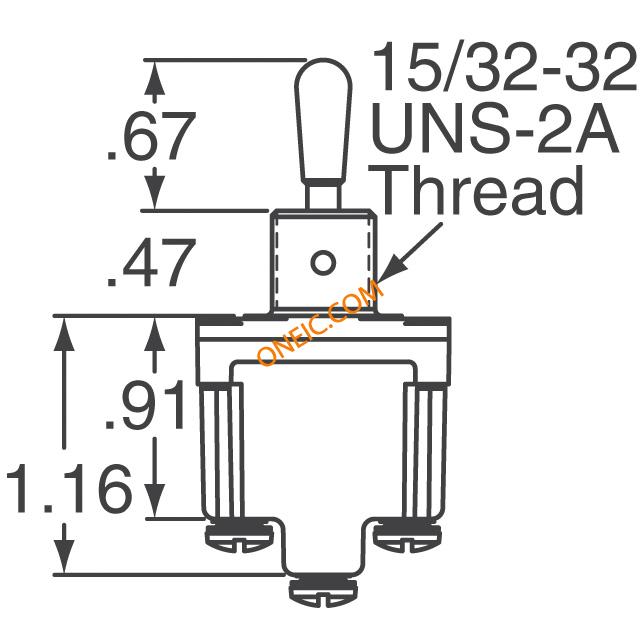

| 端子类型 | Screw | 衬套螺纹 | 15/32-32 |
| 安装样式 | Panel | 执行器长度 | 17.02mm |
| 触头材料 | Silver Cadmium Oxide | 总长度 | 28.6 mm |
| 端接样式 | Screw | 按钮样式/尺寸 | Round Lever |
| 位数 | 2 | 衬套/护套类型 | 15/32-32 |
| 开关驱动电平 | SPST | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | One-pole transportation grade toggle | 类型 | Toggle |
| 系列 | NT | 产品特性 | Sealed |
| 电路结构 | SPST | UNSPSC代码 | 30211908 |
| 照明类型 | Non-Illuminated | UNSPSC商品 | 30211908 Toggle switches |
| 应用细节 | Industrialequipment,militaryandcommercialaviation,constructionequipment,testinstruments,Agriculturalmachinery,processcontrolandmedicalinstrumentation | ||
环境参数
| 密封等级 | Sealed | 防护等级 | IP67/68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 71°C | 结工作温度 | 71C |
