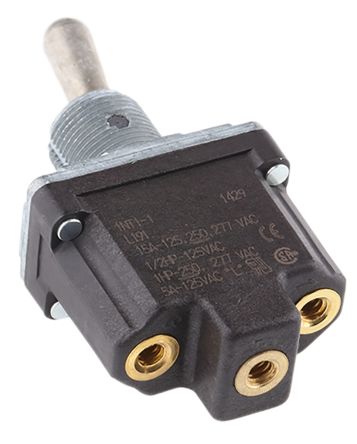

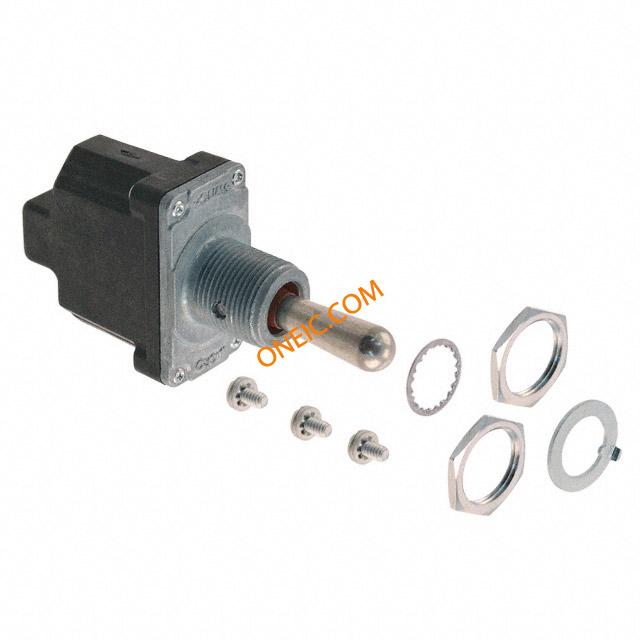

1NT1-1
| 制造商 | |
| 描述 | Toggle Switches SPDT ON-OFF-ON Screw Term Switch Toggle ON OFF ON SPDT Round Lever Screw 20A 277VAC 250VDC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE SPDT 15A 125V Switch; Toggle; 1 Pole; 3 Position; Screw Terminal; Standard Lever Switch Toggle ON OFF ON SPDT Round Lever Screw 20A 277VAC 250VDC Panel Mount with Threads Product Highlights:Completely sealed switching chamberNEMA 3, 3R, 4, and 13UL recognized, File E12252, Vol. 1, Section 44CSA certified, File LR4442CE approvedPotential Applications:Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranesConstruction equipmentAgriculture equipmentMaterial-handling equipmentFactory-floor control unitsMachine tool equipment manufacturers Switch;Toggle;1Pole;3Position;ScrewTerminal;StandardLever NT Series Toggle Switch, 1 pole, 3 position, Screw terminal, Standard Lever Honeywell 单刀双掷 切换开关 , 开 - 关 - 开, 20 A@ 28 V 直流 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Toggle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" | ||
电气参数
| 电路 | SPDT | 操作方式 | 125795 |
| 额定电压 | 277 V | 开关功能 | On-Off-On |
| 额定交流电压 | 277V VAC | 最大额定电流 | 15 A |
| 最小输入电压 | 277@(CSA/UL) | 开关功能/额定值 | ON OFF ON |
| 直流击穿电压（标称） | 250V VDC | 最大持续工作电压（MCOV） | 0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A to 1 |
机械参数
| 深度 | 15.7 mm | 高度 | 58.7 mm |
| 包装方式 | Bulk | 端接方式 | Screw |
| 触点形式 | SPDT | 致动器类型 | Lever |
| 安装类型 | Panel Mount with Threads | 端子类型 | Screw |
| 衬套螺纹 | 15/32-32 | 安装样式 | Panel |
| 执行器长度 | 17.02mm | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 28.6 mm | 端接样式 | Screw |
| 按钮样式/尺寸 | Round Lever | 衬套/护套类型 | 15/32-32 |
| 开关驱动电平 | SPDT | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | One-pole transportation grade toggle | 类型 | Toggle |
| 系列 | NT | 产品特性 | Sealed |
| 电路结构 | SPDT | UNSPSC代码 | 30211908 |
| 照明类型 | Non-Illuminated | UNSPSC商品 | 30211908 Toggle switches |
环境参数
| 密封等级 | Sealed | 防护等级 | IP67/68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 71°C | 结工作温度 | 71C |
