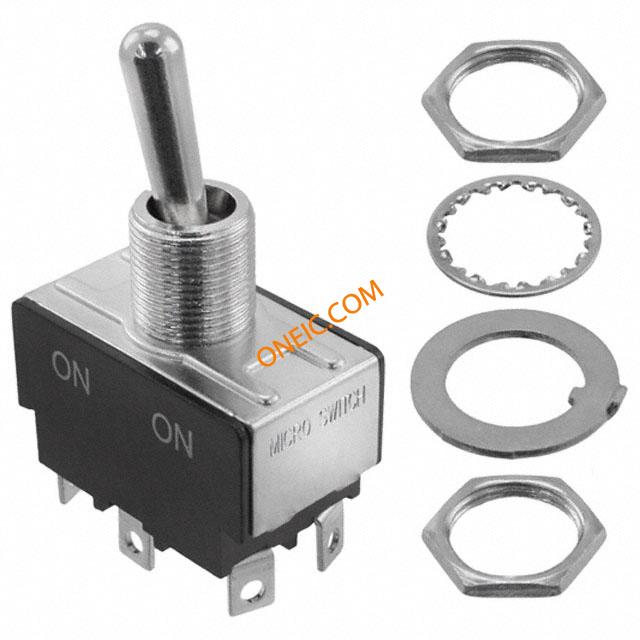

12TS115-3
| 制造商 | |
| 描述 | Toggle Switches DPDT ON-ON Solder Term MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE DPDT 20A 125V SWITCH; TOGGLE; 2 POLE; 2 POSITION; SOLDER TERMINAL; STANDARD LEVER Switch Toggle ON ON DPDT Round Lever Solder 20A 277VAC 745.7VA Panel Mount with Threads Switch Toggle ON ON DPDT Round Lever Solder 20A 277VAC 745.7VA Panel Mount with Threads Product Highlights:2- or 3-position, momentary and maintained action1- and 2-pole circuitryRated up to 20 ampLever-to-bushing sealUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation Switch,Toggle;20A@125VAC,10A@277VAC;DPDT;Solderterminals TS Series Toggle Switch, 2 pole, 2 position, Solder terminal, Standard Lever |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Switch Toggle |
| 产品类别 | Toggle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | ULRecognized,CSACertified,CEApproved |
| 认证机构标志 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" | ||
电气参数
| 电路 | DPDT | 操作方式 | 124971 |
| 额定电压 | 277 V | 开关功能 | On-On |
| 供电电压 | 0.4 A to 20 A at 0.5 Vac to 125 Vac|0.4 A to 10 A at 126 Vac to 277 Vac | 最大额定电流 | 10 A |
| 最大持续工作电压（MCOV） | 0.4 A to 20 A at 0.5 Vac to 125 Vac|0.4 A to 10 A at 126 Vac to 277 Vac | ||
机械参数
| 包装方式 | Bulk | 端接方式 | Solder |
| 触点形式 | DPDT | 外壳表面处理 | Levertobushingsealedtoprevententranceofliquidsordust |
| 致动器类型 | Lever | 安装类型 | Bushing 15/32 in |
| 衬套螺纹 | 15/32-32 | 安装样式 | Panel |
| 执行器长度 | 16.51mm | 执行器材料 | Nickel Plated |
| 端接样式 | Solder | 衬套/护套类型 | 15/32-32 |
| 安装孔直径 | 0.49In. | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | Furnished unassembled | 系列 | TS |
| 产品特性 | Sealed | 功能 | 2 position |
| 电路结构 | DPDT | UNSPSC代码 | 30211908 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Toggle Switch |
| UNSPSC商品 | 30211908 Toggle switches | ||
环境参数
| 密封等级 | Sealed | 工作温度 | -54°C ~ 71°C |
