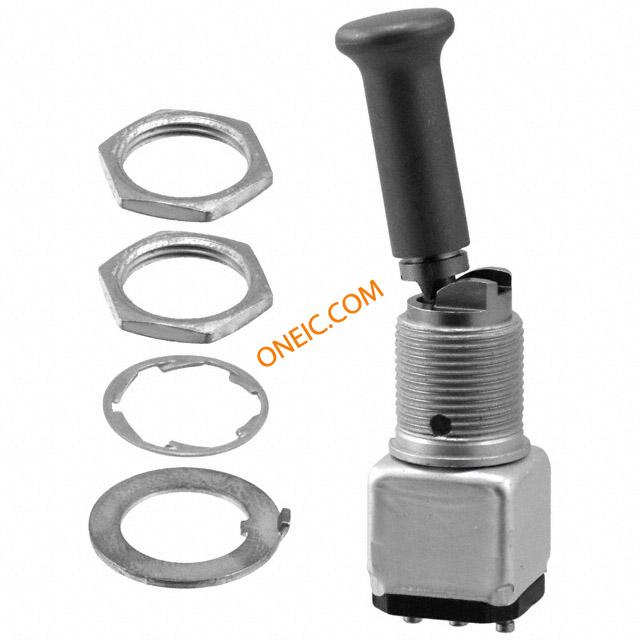

11TW8-3G
| 制造商 | |
| 描述 | Toggle Switches 1 Pole 2 Position Locker Lever Switch Toggle ON None ON SPDT Locking Lever Solder 5A 125VAC Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE SPDT 15A 125V Switch Toggle ON None ON SPDT Locking Lever Solder 5A 125VAC Panel Mount with Threads Product Highlights:Save space and weightSPDT and DPDT circuitryTemperature range: -85�F to +160�F (-65�C to +71�C)Sealed bushing versionsChoice of � in. or 15/32 in. bushingColor tab available on 15/32 in. bushingUL recognizedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SWITCH,TOGGLE,SPDT,5A,125V,SOLDER TW Series Toggle Switch, 1 pole, 2 position, Solder terminal, Locking Lever |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Toggle Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L117: 5 A at 125 Vac | ||
电气参数
| 电路 | SPDT | 操作方式 | 124812 |
| 额定电压 | 125 V | 开关功能 | On-On |
| 供电电压 | 0.1 A to 5.0 A at 0.5 Vac to 115 Vac|0.1 A to 5.0 A at 0.5 Vdc to 28 Vdc | 最大额定电流 | 5 A |
| 最小输入电压 | 125 | 开关功能/额定值 | ON None ON |
| 最大持续工作电压（MCOV） | 0.1 A to 5.0 A at 0.5 Vac to 115 Vac|0.1 A to 5.0 A at 0.5 Vdc to 28 Vdc | ||
机械参数
| 深度 | 13.59 | 高度 | 60.2 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触点形式 | SPDT | 致动器类型 | Lever |
| 安装类型 | Panel Mount with Threads | 端子类型 | Solder |
| 衬套螺纹 | 15/32-32 | 接触镀层 | Gold |
| 安装样式 | Panel | 执行器长度 | 29.46mm |
| 锁定特性 | 124813 | 总长度 | 14.6 |
| 端接样式 | Solder | 按钮样式/尺寸 | Locking Lever |
| 衬套/护套类型 | 15/32-32 | 开关驱动电平 | SPDT |
| 面板开孔尺寸（外形） | Circular - 12.40mm Dia | ||
产品信息
| 备注 | Gold Plated Contacts | 系列 | TW |
| 功能 | 2 position | 电路结构 | SPDT |
| UNSPSC代码 | 30211908 | 照明类型 | Non-Illuminated |
| 产品子类型 | MICRO SWITCH⢠Toggle Switch | UNSPSC商品 | 30211908 Toggle switches |
环境参数
| 密封等级 | Sealed | 防护等级 | Environment Proof |
| 工作温度 | -65°C ~ 71°C | ||
